Static Routing Configuration

Preconditions for static routing configuration：

Tenant services and container gateway services are deployed in the same k8s cluster
The API access of the tenant service needs to go through the container gateway

If the services provided by the tenant are in the public cloud, do not configure static routing; instead you need to use the swagger file to register the API

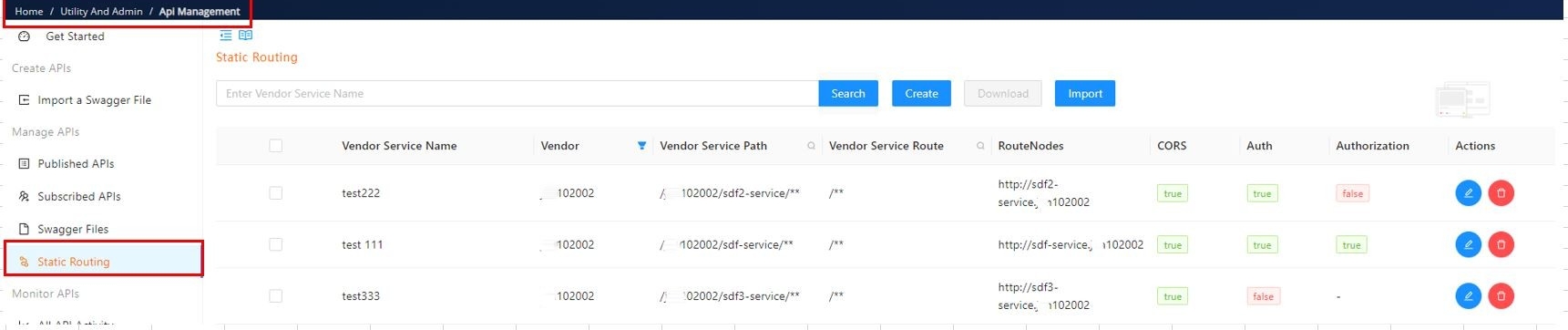

Static Route Management

Use the user of tenantCode. admin to log in to the portal environment and configure the tenant routing. Only tenant administrators have the default management function for static routing.

Function Introduction

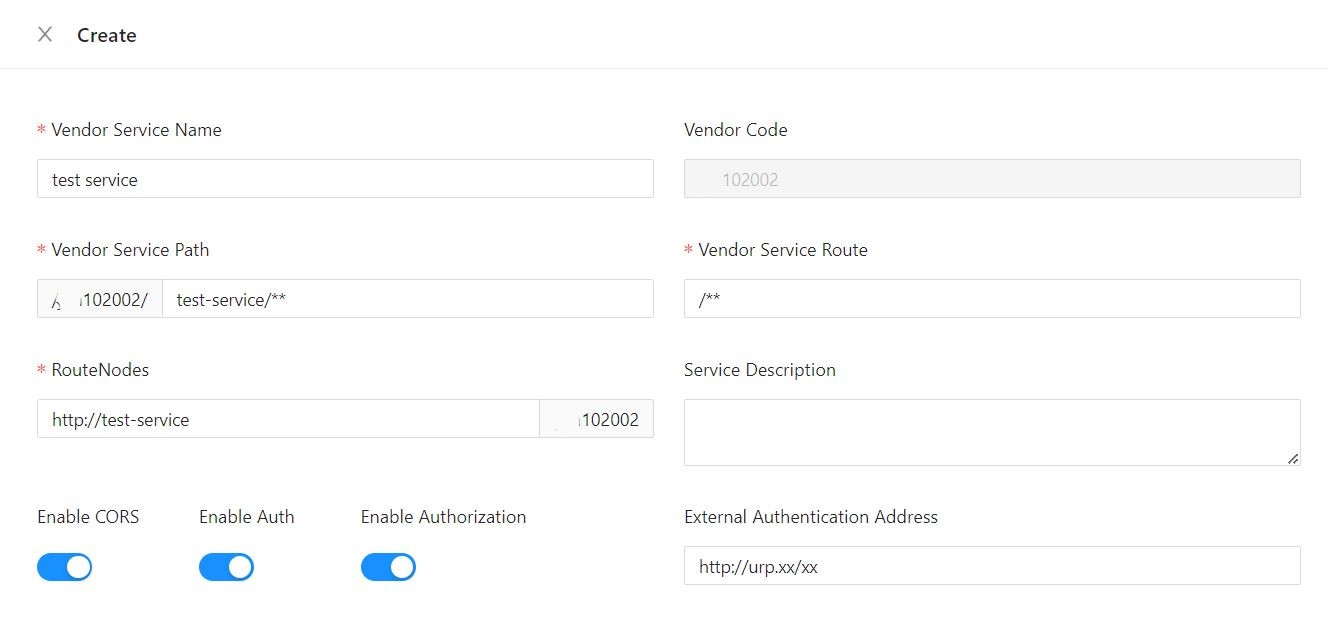

Create Route

Configuration Introduction：

Field	Description
Vendor Service Name	Static Routing Service Name.
Vendor Code	The static route belongs to the same tenant as the current login user, and cannot be modified by default.
Vendor Service Path	Routing entry, starting with the tenant prefix, cannot be modified by default ”/**” Identify wildcard routing matching rules. It is not recommended to configure conflicting addresses, especially non authenticated APIs. It is recommended to distinguish them from wildcard configured APIs.
Vendor Service Route	The address that the gateway requests backend services can be concatenated after RouteNodes to access backend services.
RouteNodes	The backend service address ends with the tenant suffix, which is not modifiable by default.
Service Description	Service description.
Enable CORS	Do gateways need to be unified for cross domain processing?
Enable Auth	Does the API exposed by the backend service require authentication if the enabled gateway checks the token?
Enable Authorization	Does the API exposed by the backend service require authentication if the enabled gateway verifies whether the current user has access to the API?
External Authorization Address	1. If not configured, use the container’s URP for authentication. 2. If configured, authenticate to the specified address. For example, when authenticating to the platform (GIMO) URP, the address configuration is as follows：http://urp.platform/public/checkApi/fromContainer

Route import and export

Check the route that needs to be downloaded and download it. The downloaded data structure is as follows：

If you want to manually edit the routing data for batch upload, please note the following：

disableAuthorize
- true: represents that the authentication verification for APIs is disabled
- false: represents that the authentication verification for APIs is enabled
order
- If the route enables auth, the value is configured as 0
- If the route disables auth, the value is configured as 10

[
  {
    "vendorServiceName": "test 111",
    "vendorServicePath": "/jan102002/sdf-service/**",
    "vendorServiceRoute": "/**",
    "vendorCode": "jan102002",
    "serviceDescription": "",
    "routeNodes": "http://sdf-service.jan102002",
    "attribute": "{\"enableCORS\":true,\"enableAuth\":true,\"extAuthorizationUrl\":\"http://aaa/bbb\",\"disableAuthorize\":false}",
    "order": 0
  },
  {
    "vendorServiceName": "test222",
    "vendorServicePath": "/jan102002/sdf2-service/**",
    "vendorServiceRoute": "/**",
    "vendorCode": "jan102002",
    "serviceDescription": "",
    "routeNodes": "http://sdf2-service.jan102002",
    "attribute": "{\"enableCORS\":true,\"enableAuth\":true,\"disableAuthorize\":true}",
    "order": 0
  },
  {
    "vendorServiceName": "test333",
    "vendorServicePath": "/jan102002/sdf3-service/**",
    "vendorServiceRoute": "/**",
    "vendorCode": "jan102002",
    "serviceDescription": "",
    "routeNodes": "http://sdf3-service.jan102002",
    "attribute": "{\"enableCORS\":true,\"enableAuth\":false,\"disableAuthorize\":false}",
    "order": 10
  }
]

Static routing automation publishing

Currently, it supports configuring static routes on portal environments and publishing them to designated environments through the CICD.

In order to ensure the smooth progress of the automated publishing, the following related content needs to be processed in advance：

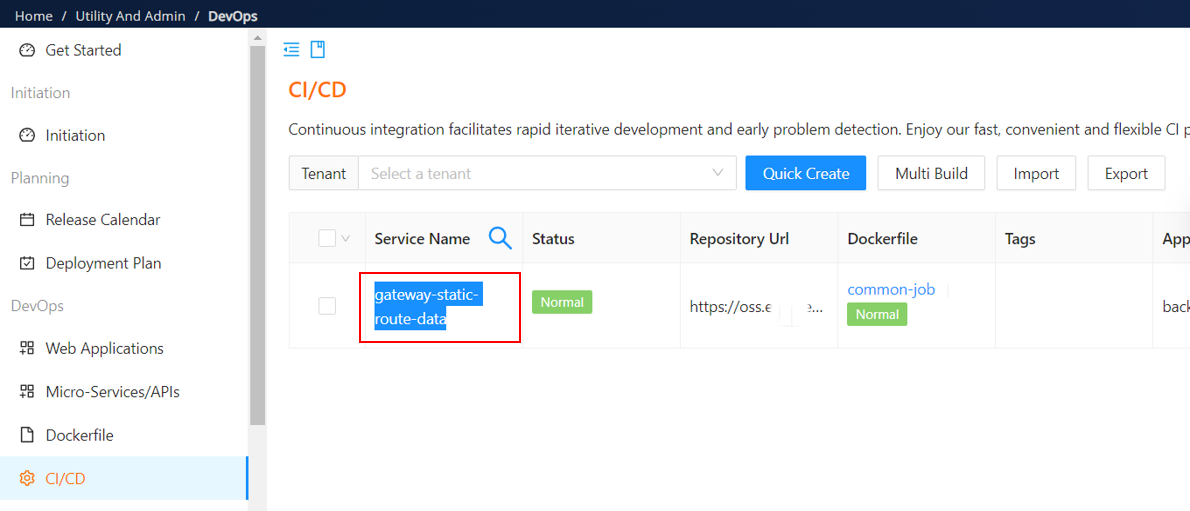

Check if the CI/CD task exists

Check if the gateway-static-route-data job exists. If it does not exist, contact CM for processing.

Check Service List

Check the service list of the target environment at devops and add gateway-static-route-data to the service list. Otherwise, this job will be ignored during deploy.

Contact TS colleagues to modify the service list
