What is Config Center

A configuration center is a centralized component used to manage environment-specific parameters for a microservice application. These parameters may include:

• Database connection strings
• Server addresses
• API keys
• Other settings that vary between environments

Benefits of Using a Configuration Center

Using a configuration center simplifies managing and maintaining multiple environments, like development, staging, and production. Instead of hardcoding environment-specific settings into the application code, these settings can be stored in the configuration center and accessed at runtime.

This approach has several advantages:

1. Simplify Updates: It allows for easy configuration changes without having to modify and redeploy application code.

2. Reduce Risk: It can help prevent errors caused by environment-specific settings being inadvertently included in code repositories or deployment packages.

3. Enhance Security: It can improve security by allowing sensitive parameters to be stored separately from application code and only accessed by authorized users.

How to Use Config Center

• Configuration rules

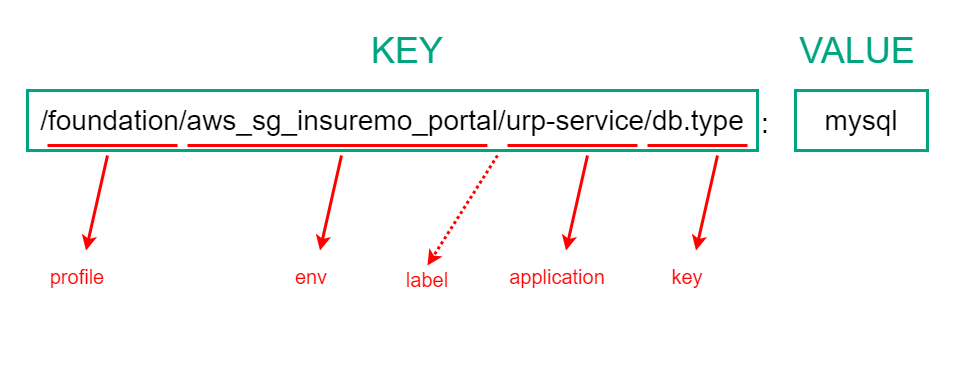

  • The key of the configuration center data is separated by ’/’, where each level has different meanings. The value is the configuration data. If it is the current effective environment, the environment name is local.

• View configuration
  • Three modes: Table、Tree and JSON

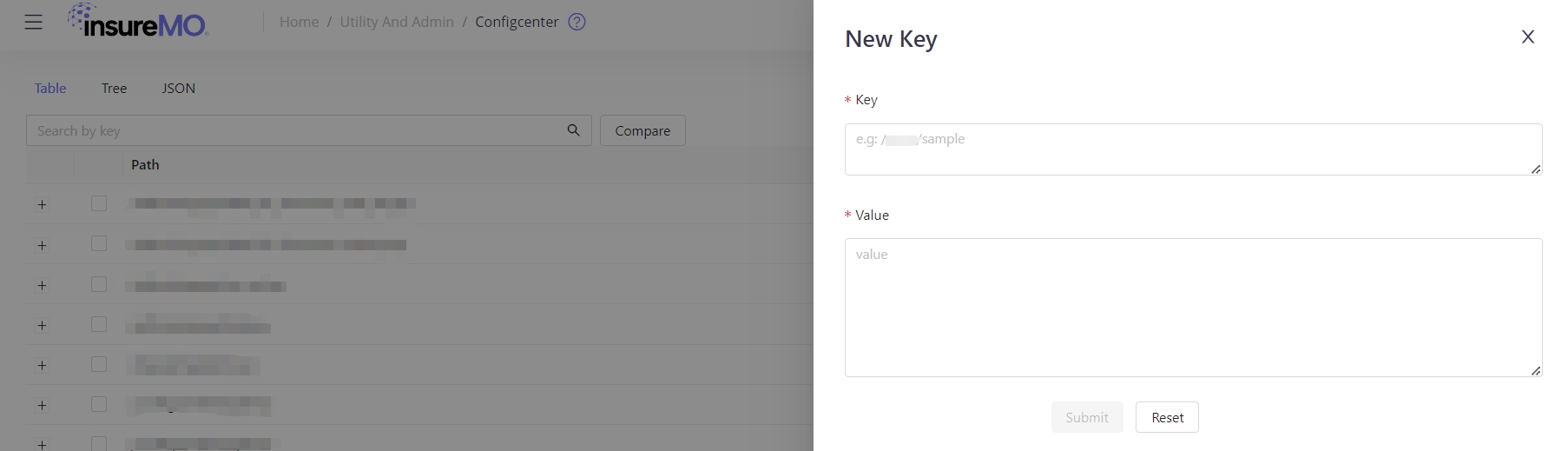

• Add configuration
  • Add key：value

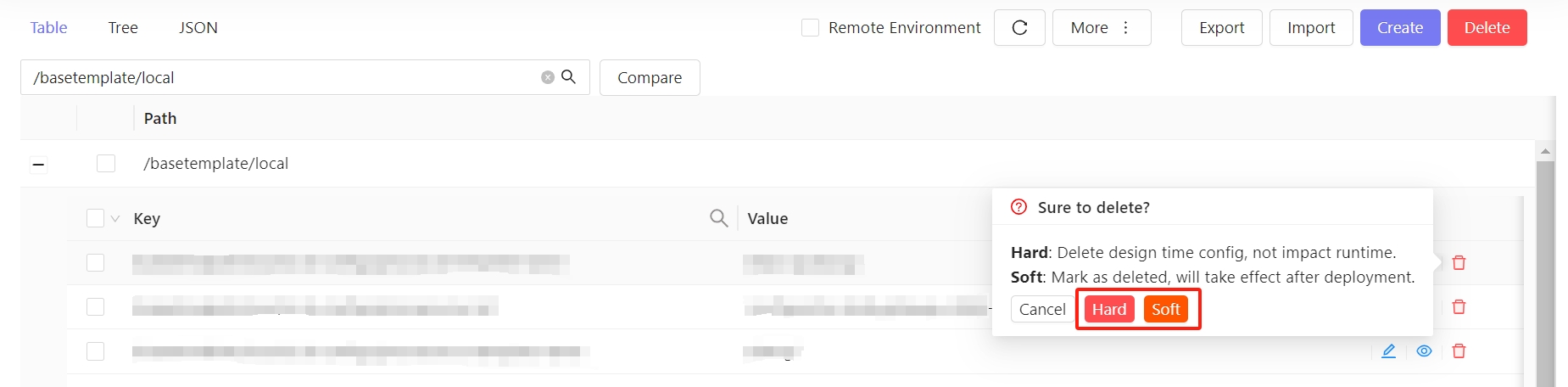

• Delete configuration
  • Two modes of deletion

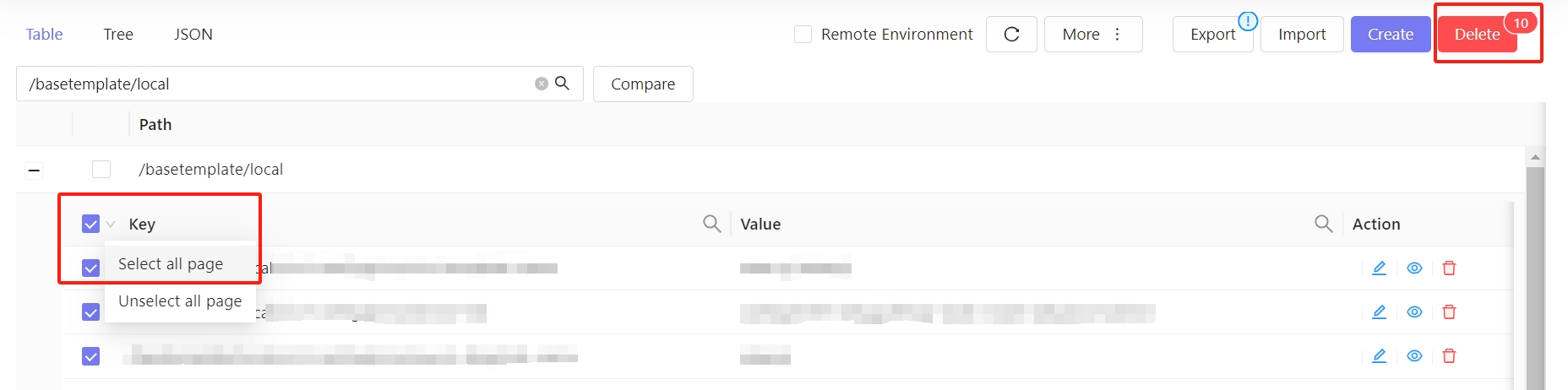

• Batch deletion

Service Integration

• Template integration
  • The integration method is simple and easy to operate, convenient and fast.
• SDK integration
  • You can add the SDK provided by insureMO with less dependence.
• API Integration
  • You need to get the processing configuration yourself.

Data Storage

For private installation, it’s important to understand that config-center is powered by eted in the backend as separate middleware.

• About etcd
  Etcd is a distributed key-value store that can be used to store and retrieve configuration data in a reliable, scalable, and highly available manner. In distributed systems, it is often used for:
  • Service discovery
  • Configuration management
  • Coordination in distributed systems

Using etcd for configuration management allows to store configuration data as key-value pairs, where each key represents a configuration parameter and each value represents its corresponding value.

By organizing configuration data in this way, users can easily manage different configurations for different environments by creating separate keys for each environment.

Usage Scenario

• Unified management of service configuration
• The service calls and reads configuration

Page

• Config center

API

The latest API version is V2, with the base path /config/v2. The V1 APIs (/config/export, /config/import, /config/configs) are deprecated.
V2 APIs require MO user authentication (via gateway Bearer token).
Gateway URL format: {{insuremo_gw_url}}/mo-fo/v1/config/v2/{endpoint}

Get Configuration (Service Invocation)

• GET request：
  {{insuremo_gw_url}}/mo-fo/v1/config/v2/configs

• Query Params：

  Parameter	Required	Description
  profile	Yes	Tenant code, e.g. foundation
  environment	No	Environment name, default is local
  application	No	Application name, e.g. urp-service
  key	No	Specific key name
  mode	No	Set to mix to merge public application configs with the specified application configs

• Headers：
  Authorization: Bearer xxxxxxxxxxxxxxxxxx

• Response: Returns decrypted plaintext values. Sensitive configs are automatically decrypted before returning.

• Response Body：

  {
    "code": "i_common_success",
    "message": "request success",
    "trace_id": "",
    "env_name": "test_env",
    "date": "2026-07-29T03:46:38.224Z",
    "data": {
      "env": "local",
      "profile": "tenant-a",
      "application": "my-app",
      "label": "",
      "key": "",
      "data": {
        "db.host": "localhost",
        "db.port": "3306"
      }
    }
  }

  Field	Type	Description
  code	string	Response code, e.g. i_common_success
  message	string	Response message
  trace_id	string	Trace ID for request tracking
  env_name	string	Environment name
  date	string	Response timestamp (ISO 8601)
  data.env	string	Environment
  data.profile	string	Tenant code
  data.application	string	Application name
  data.label	string	Label
  data.key	string	Key filter
  data.data	map[string]string	Key-value pairs of configuration data (decrypted plaintext)

Export Configuration

• GET request：
  {{insuremo_gw_url}}/mo-fo/v1/config/v2/export

• Query Params：

  Parameter	Required	Description
  profile	Yes	Tenant code, e.g. foundation
  environment	No	Environment name, e.g. dev, tst. Default is local
  application	No	Application name, e.g. urp-service
  key	No	Specific key name to export
  included_prefix	No	Only export keys with this prefix
  excluded_prefix	No	Exclude keys with this prefix
  ignore_meta_data	No	Ignore meta data in export

• Headers：
  Authorization: Bearer xxxxxxxxxxxxxxxxxx

• Response: Returns encrypted/masked values. Sensitive configs are exported as *mo_encrypted* ciphertext.

• Response Body：

  {
    "code": "i_common_success",
    "message": "request success",
    "trace_id": "",
    "env_name": "test_env",
    "date": "2026-07-29T03:46:38.224Z",
    "data": {
      "env": "local",
      "profile": "tenant-a",
      "application": "my-app",
      "label": "",
      "key": "",
      "data": {
        "db.host": "ENC(xxxx)",
        "db.port": "3306"
      }
    }
  }

  Field	Type	Description
  code	string	Response code, e.g. i_common_success
  message	string	Response message
  trace_id	string	Trace ID for request tracking
  env_name	string	Environment name
  date	string	Response timestamp (ISO 8601)
  data.env	string	Environment
  data.profile	string	Tenant code
  data.application	string	Application name
  data.label	string	Label
  data.key	string	Key filter
  data.data	map[string]string	Key-value pairs of configuration data (sensitive values encrypted as ENC(...))

Import Configuration

• POST request：
  {{insuremo_gw_url}}/mo-fo/v1/config/v2/import

• Query Params：

  Parameter	Required	Description
  is_hard	No	If true, data containing mo_deleted will not be deleted

• Request Body：

  {
    "env": "local",
    "profile": "foundation",
    "application": "urp-service",
    "label": "",
    "key": "",
    "included_prefix": "",
    "excluded_prefix": "",
    "data": {
      "db.type": "mysql",
      "db.host": "172.25.14.34"
    }
  }

  Field	Type	Description
  env	string	Environment name
  profile	string	Tenant code
  application	string	Application name
  label	string	Label
  key	string	Key name
  included_prefix	string	Only import keys with this prefix
  excluded_prefix	string	Exclude keys with this prefix
  data	map[string]string	Key-value pairs of configuration data

• Headers：
  Authorization: Bearer xxxxxxxxxxxxxxxxxx

• Note: Sensitive keys (matching pwd/password/secret/token/credential/key) are automatically AES-encrypted on write.

• Response Body：

  {
    "code": "i_common_success",
    "message": "request success",
    "trace_id": "",
    "env_name": "test_env",
    "date": "2026-07-29T03:46:38.224Z",
    "data": {
      "revision": "12345",
      "version": "v1.0.0",
      "count": {
        "put": 2,
        "delete": 0,
        "get": 0
      },
      "operator": "admin",
      "tenant_code": "tenant-a",
      "query_params": "version=v1.0.0",
      "modify_time": "2026-07-29T10:00:00Z",
      "trace_id": "abc123"
    }
  }

  Field	Type	Description
  code	string	Response code, e.g. i_common_success
  message	string	Response message
  trace_id	string	Trace ID for request tracking
  env_name	string	Environment name
  date	string	Response timestamp (ISO 8601)
  data.revision	string	Revision number of the import
  data.version	string	Version of the import
  data.count.put	number	Number of keys written
  data.count.delete	number	Number of keys deleted
  data.count.get	number	Number of keys read
  data.operator	string	Operator who performed the import
  data.tenant_code	string	Tenant code
  data.query_params	string	Query parameters used
  data.modify_time	string	Last modification time (ISO 8601)
  data.trace_id	string	Trace ID for this operation
