Introduction

Short Message Service (SMS) refers to the process of sending short messages to mobile phone users by making API calls. It connects various SMS vendors like AWS SNS, Alicloud SMS, BulkSMS, and Nexmo with unified and simplified APIs.

Usage

SMS service is mainly used by enterprises to send authentication codes, system notifications, member services, and other information to users.

Basic UI Operation

Entrance

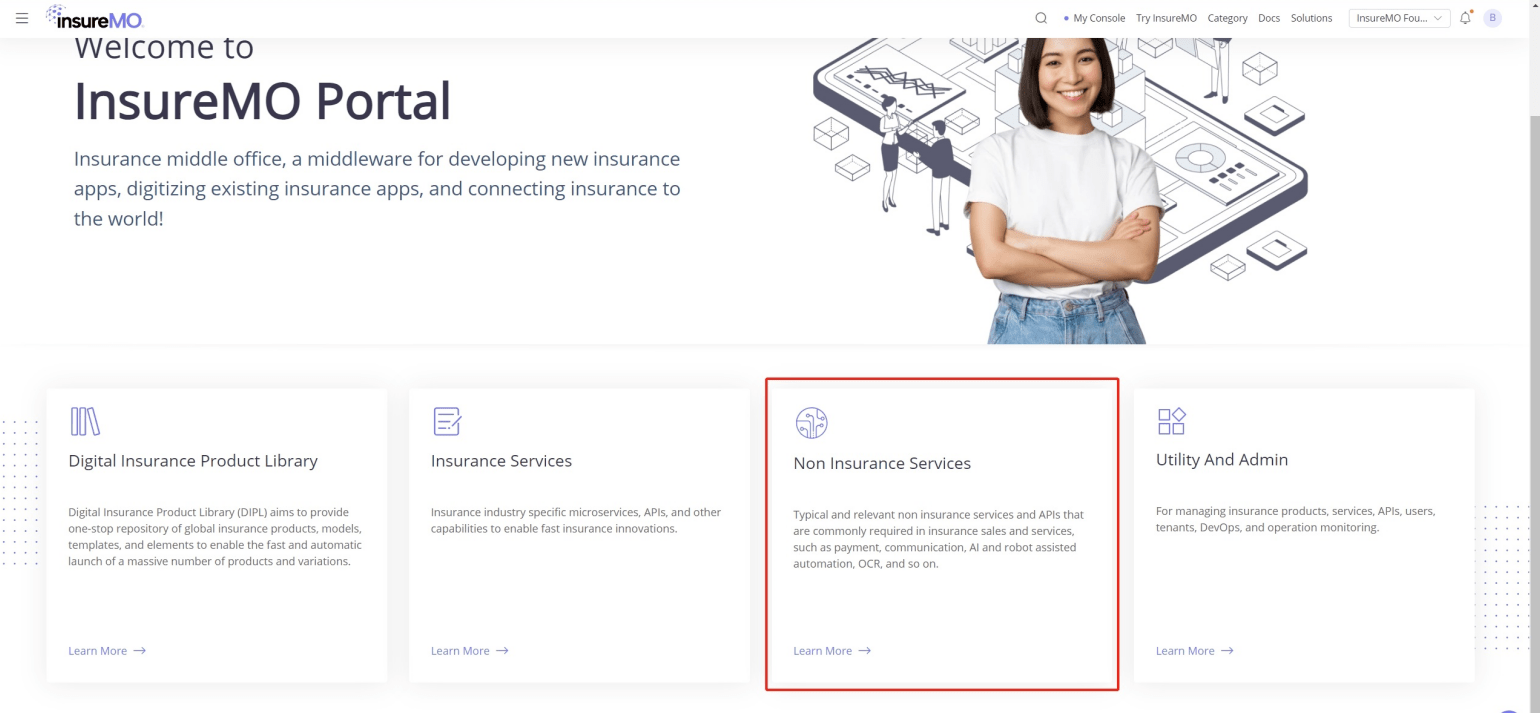

• Click Sign in to log in to the insureMO portal.

• Click Non Insurance services.

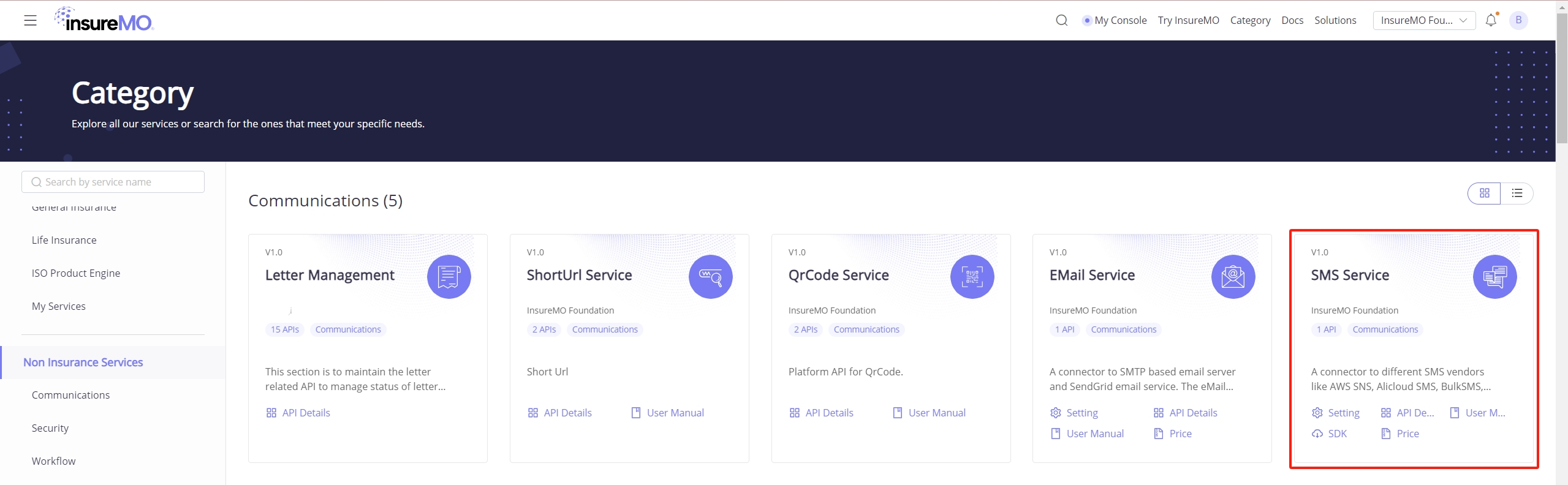

• Select Communications in the left navigation pane and you will locate SMS Service.

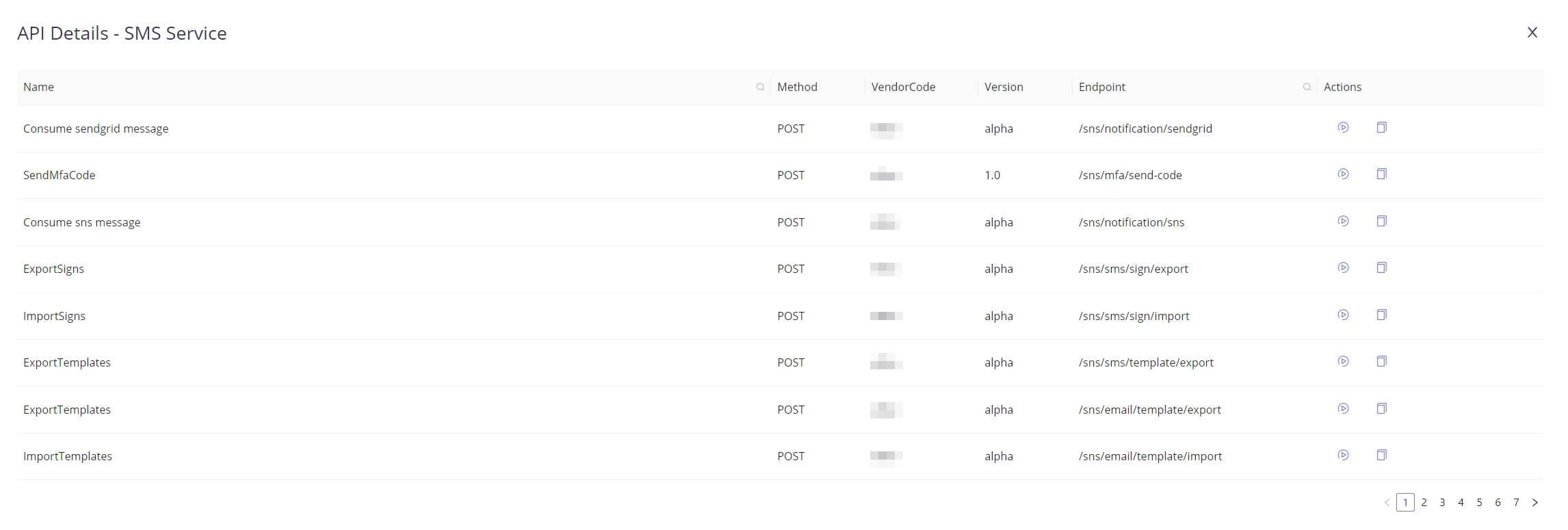

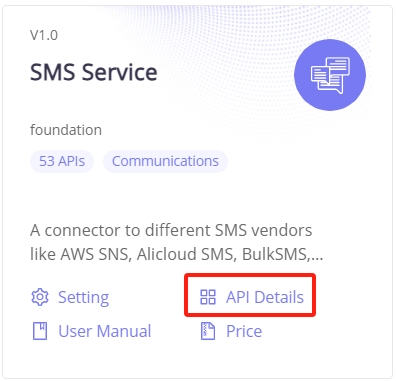

• Click API Details, and you will have access to the listed APIs.

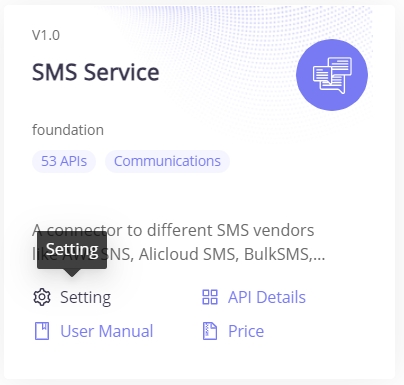

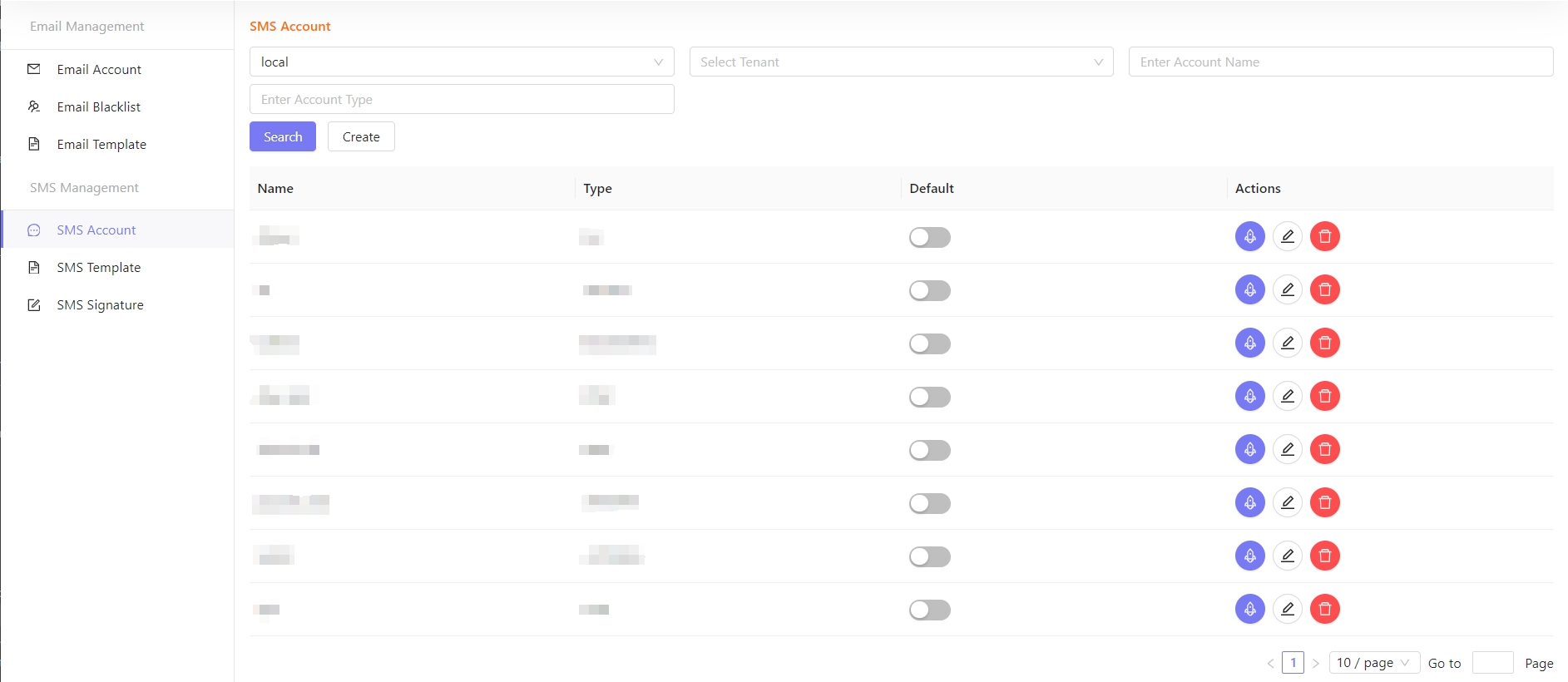

• Click Setting, and it will turn to the SMS Setting page.

Manage Account

Create

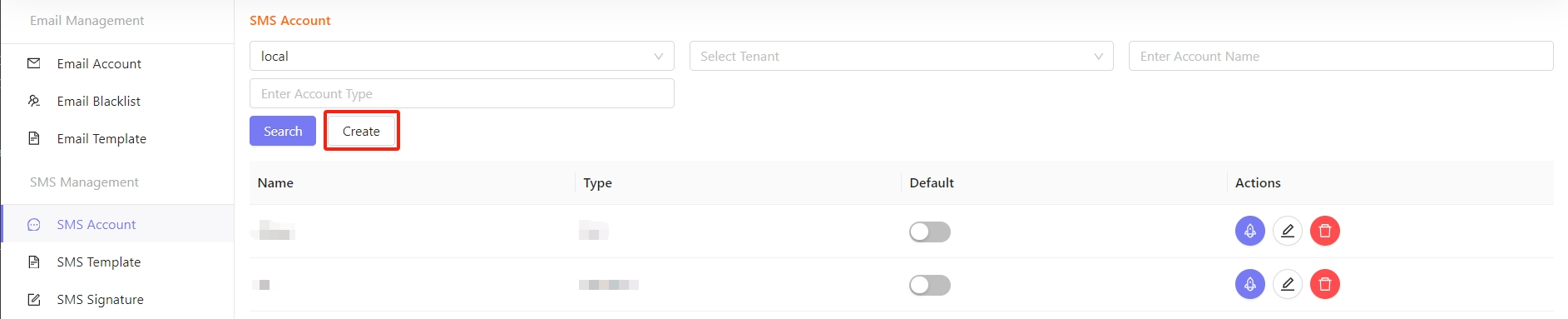

• Click Create under the SMS Account to customize SMS operator configuration.

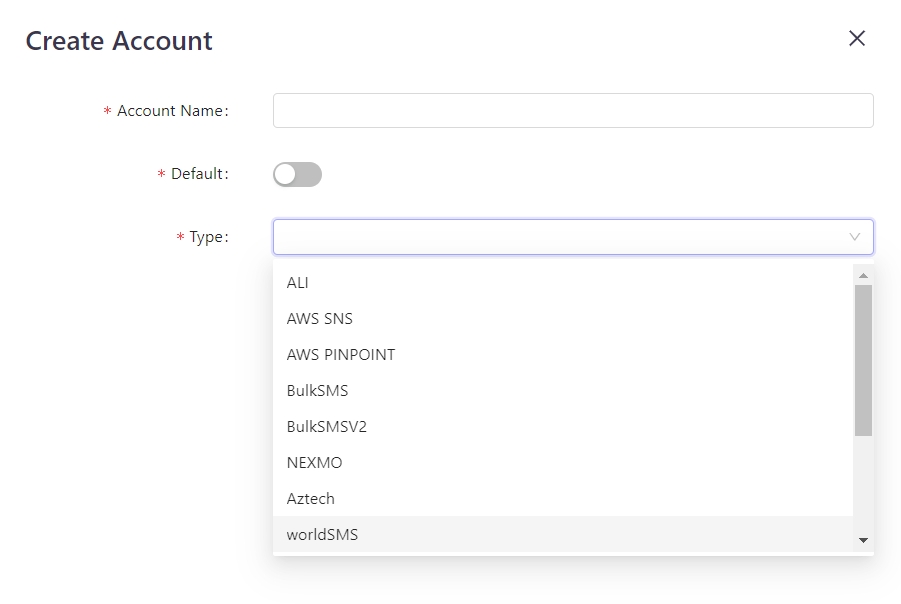

• If users want to create a custom account, they can select the desired option from the drop-down list in Type.

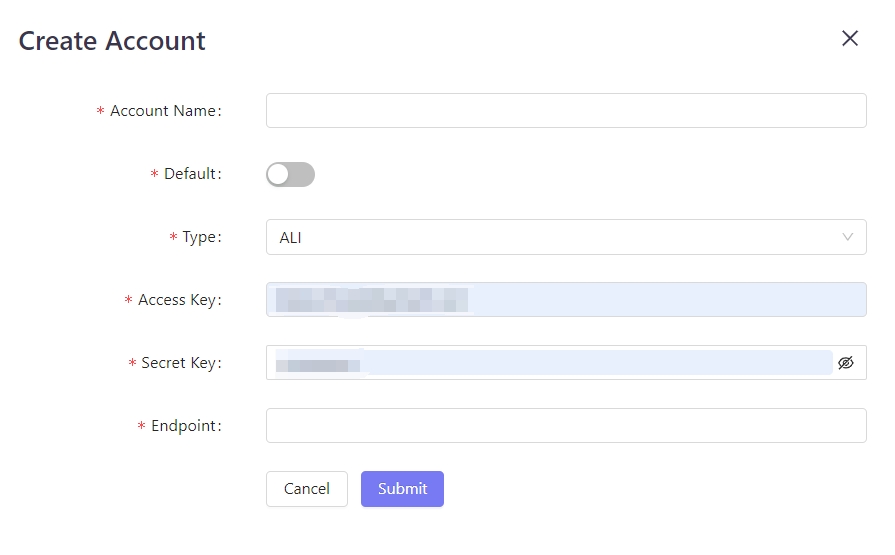

• Fill in the account details and Click Submit.

Edit

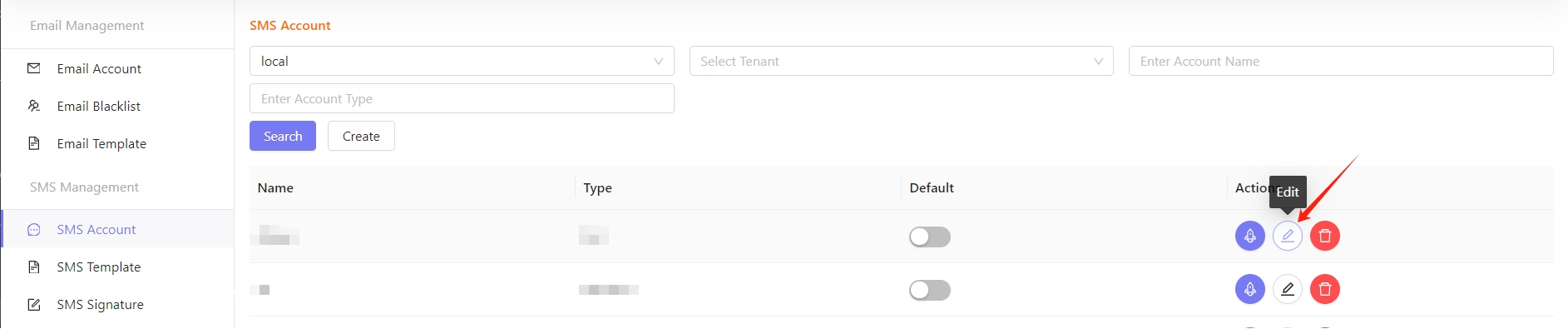

• Click Edit on the sms service console.

Delete

• Click Delete against a particular record to delete the account.

Test

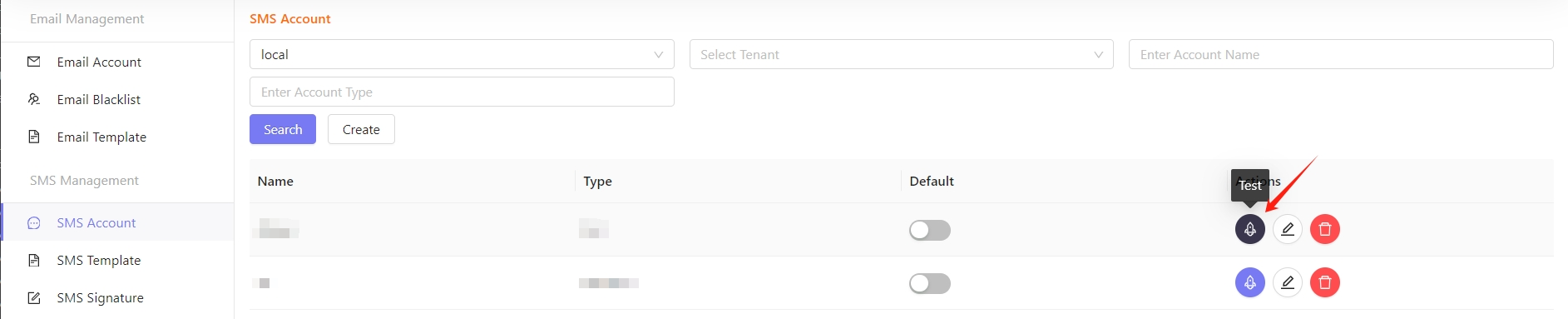

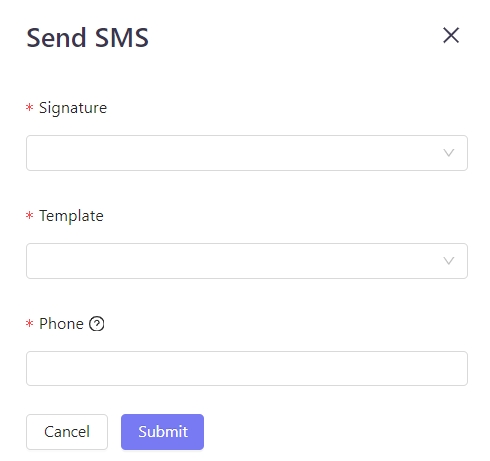

• After the account is created successfully, you can verify whether the current account is available through a test sms. If available, the receiver will receive the following test sms.

Manage Template

Create

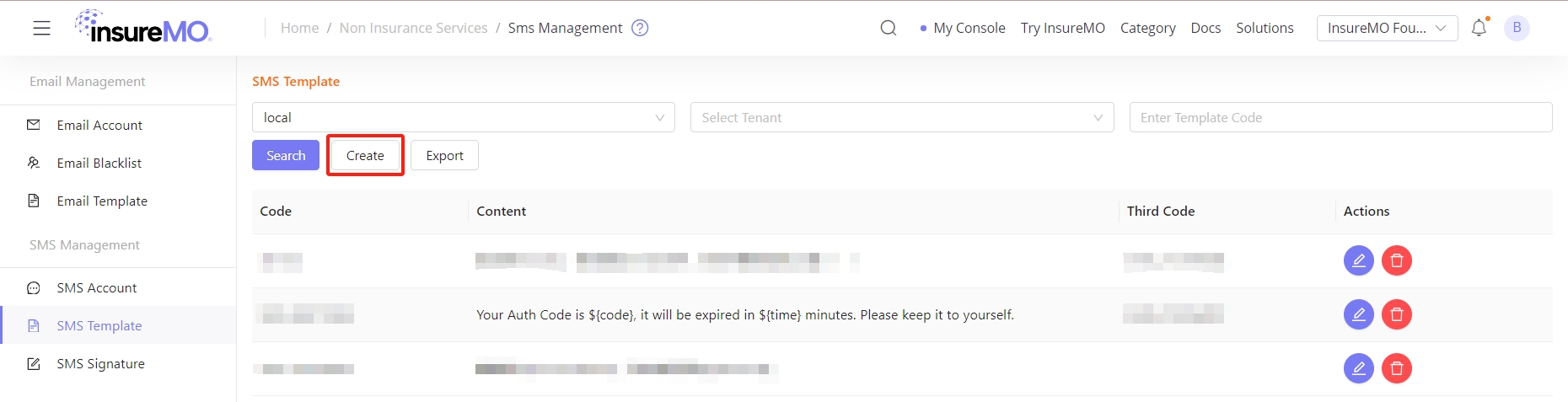

• Click Create under the SMS Template to create a template.

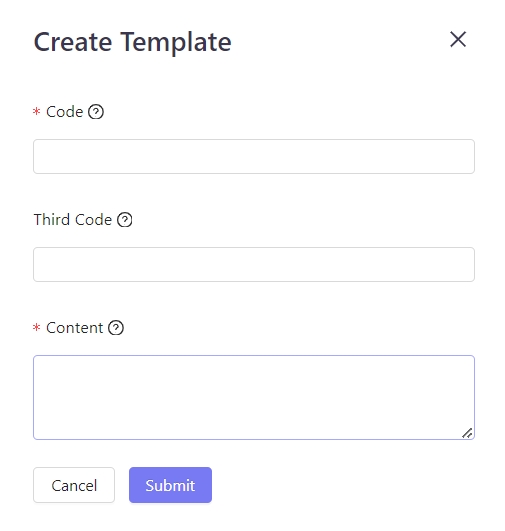

• Enter the content of the template and click Submit.

Delete

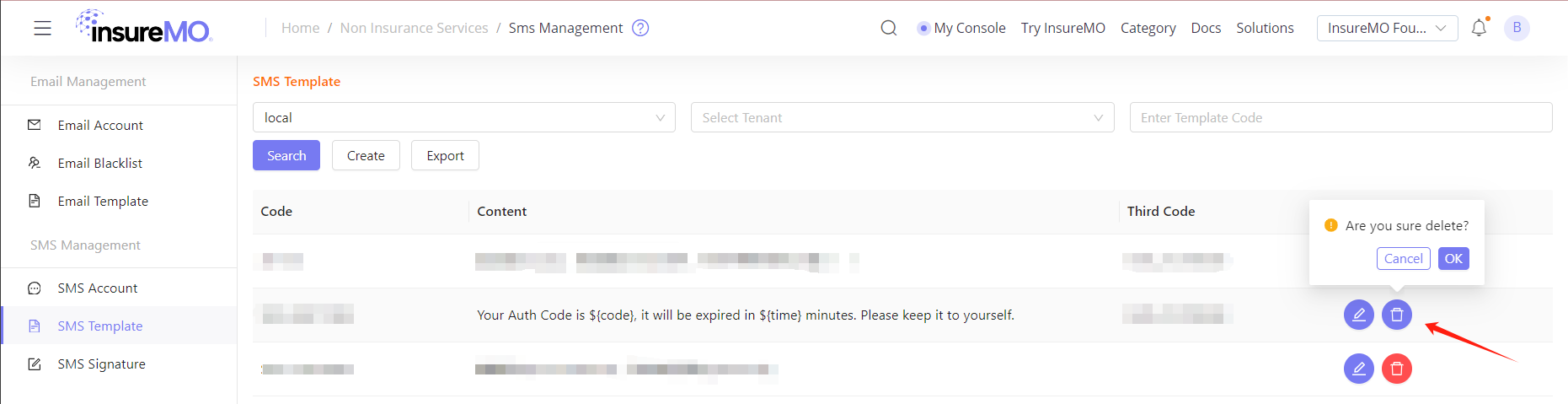

• Click delete to delete the content.

Edit

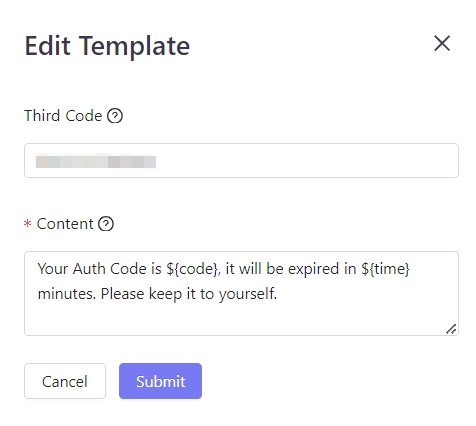

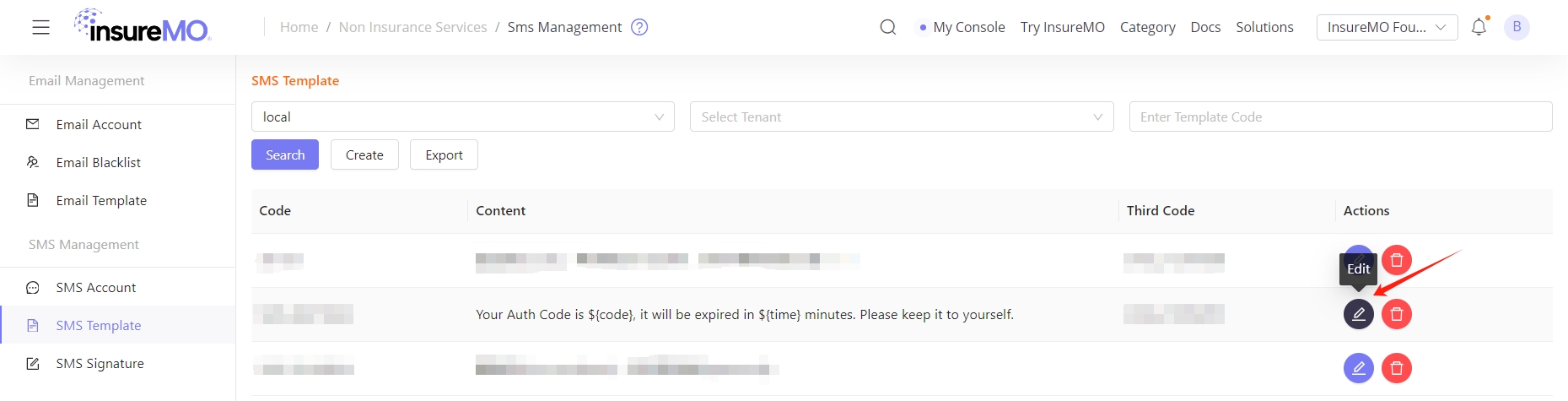

• Click edit to edit the content.

Manage Signature

Create

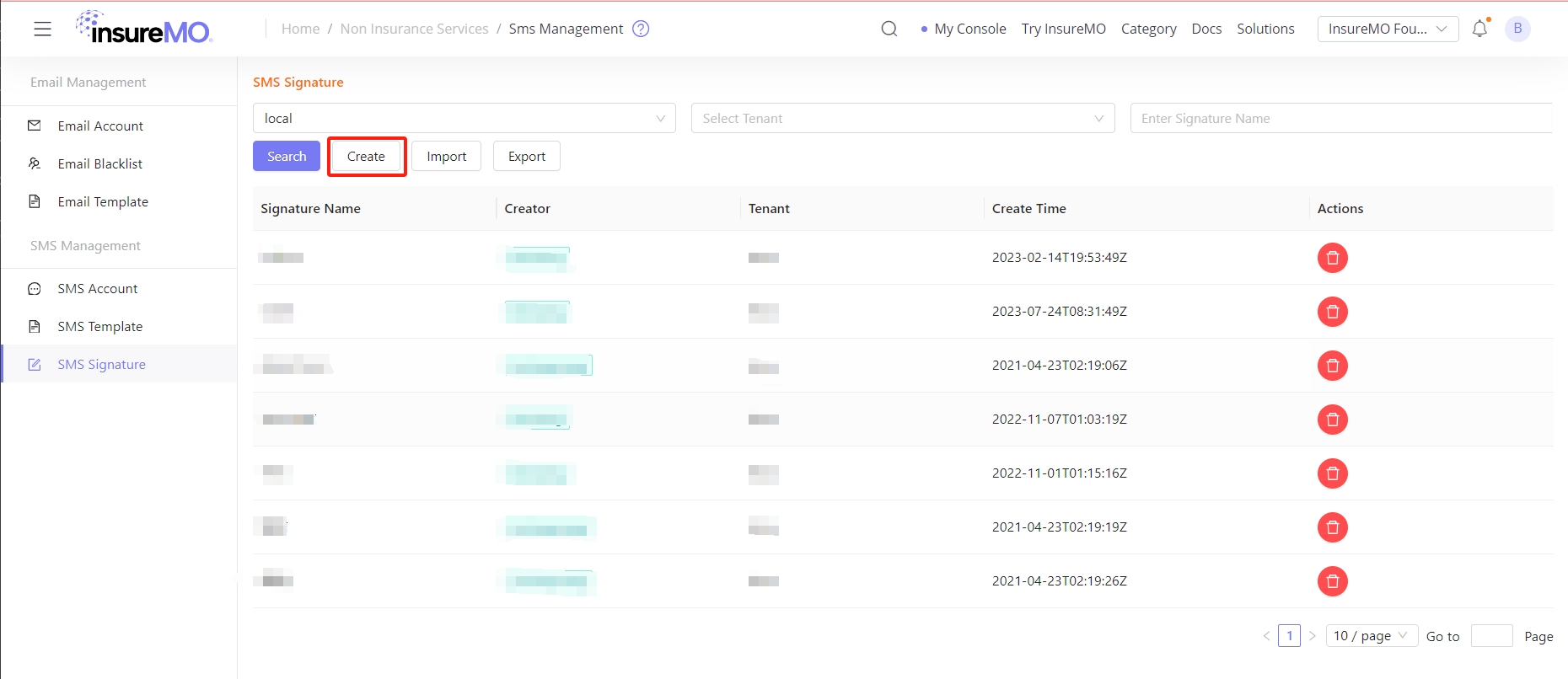

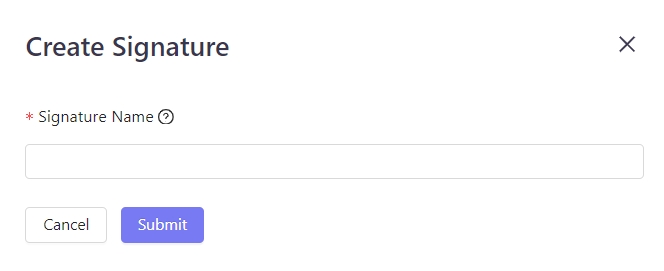

• After creating the template, the user can proceed to create a signature that will be used in the SMS. Click SMS Signature, and then Create.

• Enter a signature name that will appear at the beginning of the text message sent to the recipient.

For example: [InsureMo] Dear customer, your policy ending with XXXX has been issued.

Signature Content Restriction Description
• The signature length should be between 2 and 8 characters.
• The signature cannot only consist of numbers, or pure English, or a combination of numbers and English letters.
• [ ], ( ) and other symbols should not be included in the signature.

Delete

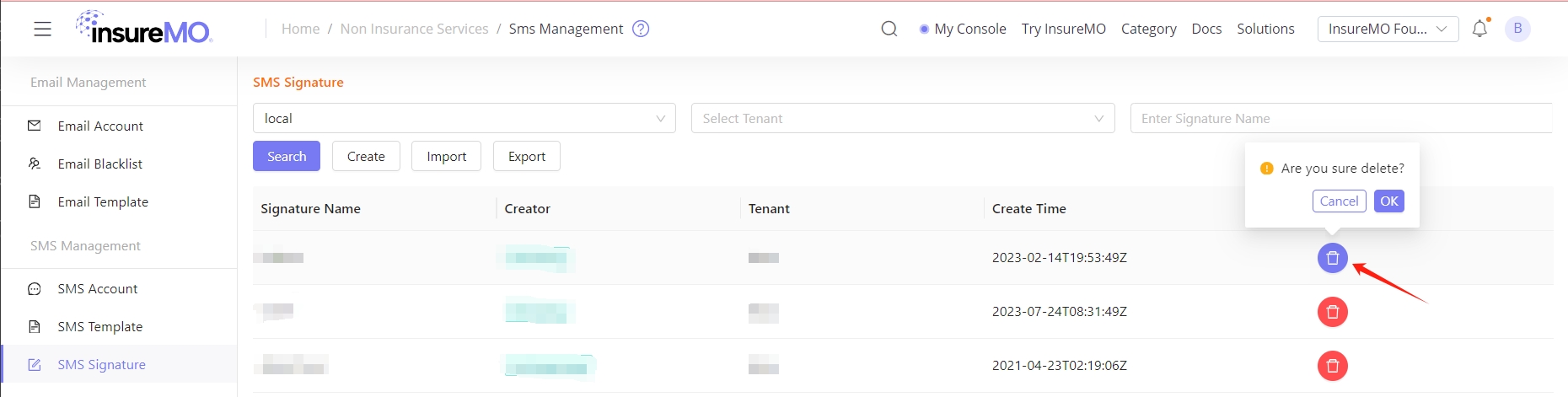

• Click delete to delete the signature.

Log

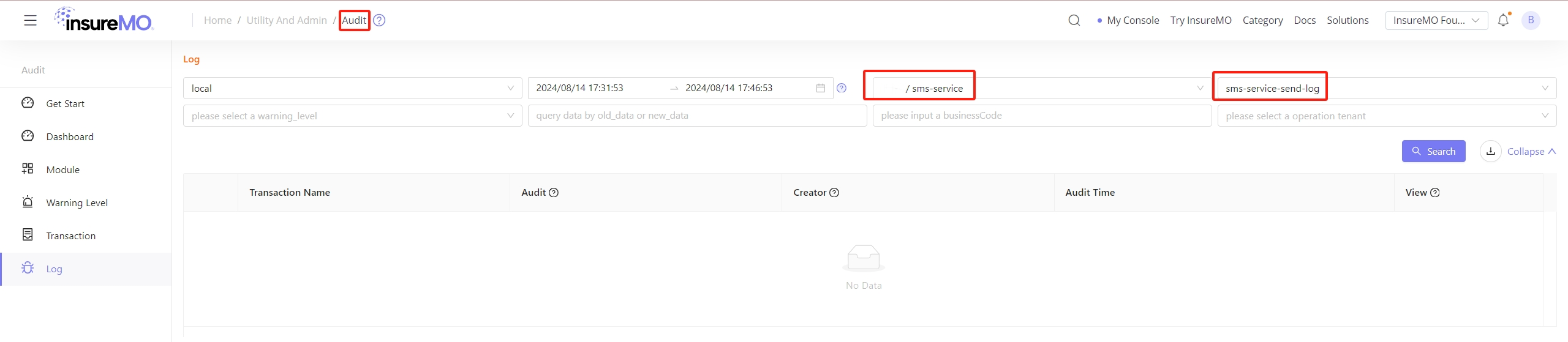

• You can view the log files in the Audit Service, they are available for a particular day and can be downloaded as well. This is required for audit purpose and to check if there is any issue in the service.

Developing with SMS Service

Calling REST APIs

For all API list, please refer to insureMO API Reference - sms

Example - Send SMS

• Once the SMS template code and signature name have been configured, the API consumer can call the SMS API to send short messages.

Restriction Description

• We strictly monitor the SMS templates and signatures created by users to prevent the message content of SMS from violating any national laws or regulations.

• If the message content violates the rules, the corresponding user account will be frozen. Once an account is frozen, the user will no longer have access to the SMS service.

Authentication

• HTTP Authentication, scheme: bearer

POST SendSms

Header

Body Parameters

{
    "to": "+xxxxxxxxxxx,+xxxxxxxxxxx",
    "template_code": "SMS-xxxxxxxx",
    "sign_name": "XXXXX",
    "template_params": {
        "accountName": "insureMO",
        "password": "12345678"
    },
    "account_name": "xxxxx",
    "sender_params": {
      "property1": "string",
      "property2": "string"
    },
    "auto_add_sign": true,
    "use_zh_bracket": true
}

Response Examples

If the code is “i_common_success”, it indicates successful sending. Otherwise, the sending fails.

{
    "code": "i_common_success",
    "message": "request success",
    "trace_id": "xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx",
    "data": {
        "to": "+xxxxxxxxxxx",
        "message_id": "xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx",
        "data": {
            "MessageId": "xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx",
            "SequenceNumber": null,
            "ResultMetadata": {}
        }
    }
}

Using insureMO SMS SDK For Java

Please refer to this document: Welcome to insureMO SDK for Java
