Basic Concept

In the insurance business, there are different numbers, including quotation numbers, policy numbers, and claim numbers. Different clients have distinct numbering rules. For example, some clients might require the inclusion of a product code within the policy number while others prefer not.
The configuration of such numbering is essential to cope with diverse business requirements.

User Scenario

For anybody who wants to use our platform to configure a number rule.

Numbering Template UI Operation

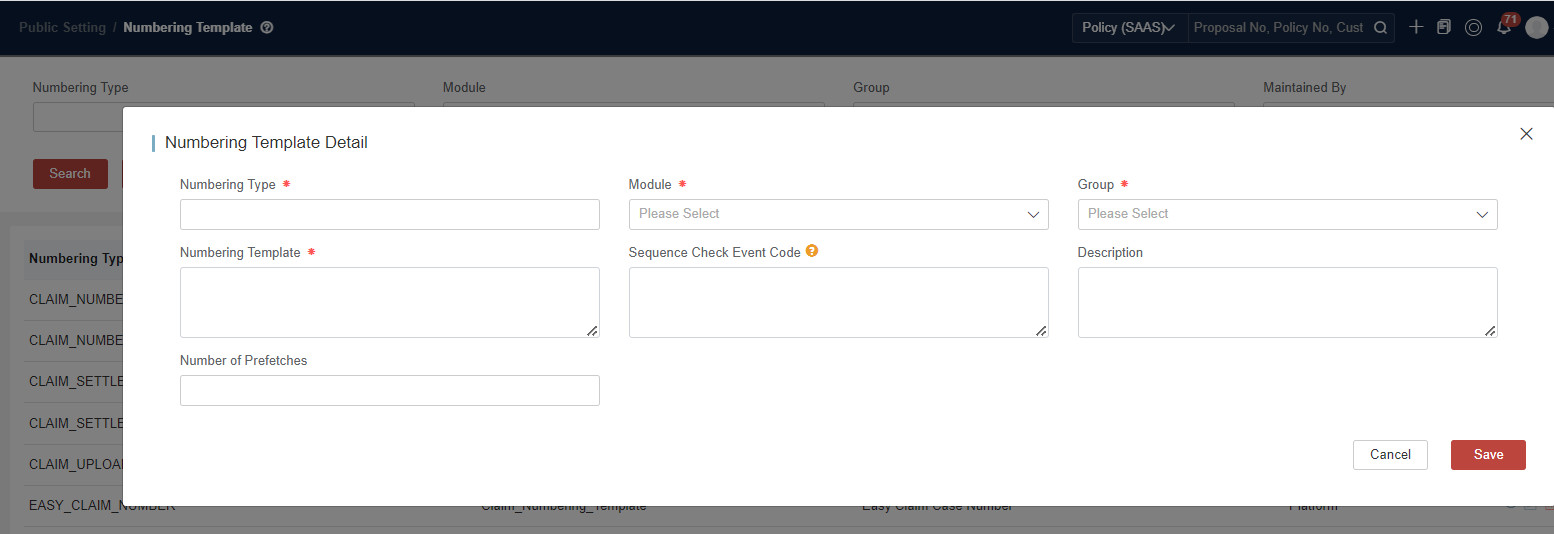

Users can modify the Numbering Template by navigating to Public Setting > Numbering Template.

Several variables are predefined in the code, such as PRODUCT_CODE, TRANS_YEAR, and TRANS_MONTH, which can be used directly. The undefined in the code needs to be obtained through rule-writing logic.

Before start, it’s important to differentiate the following three concepts first:

• Support variables that affect the numbering in the numbering template.
• Support variables that affect the numbering sequence to share a set of numbering sequences.
• Support sequence factors that affect the numbering to control numbering sequence through rules.
  For example, rules can be set to return odd or even numbers or to skip numbers with the digit 4.

Number Template Field Description

Numbering Template & Applicable API

Core API - generateByTypeAndNumberFactors

The API generateByTypeAndNumberFactors is designed to generate all the numbers based on the numbering template. The business-related APIs are used to generate numbers automatically. If users want to generate numbers separately and use them as input in business-related APIs, users can invoke the following API.

• {{server}}/platform-pub/public/numbering/v1/generateByTypeAndNumberFactors?numberingType={{template}}

Relevant API Adopted in GI Business

Example 1 - Variables & Sequence

Create a template SEQ_TEST as,

{PRODUCT_CODE}-{TRANS_YEAR}-{TRANS_MONTH}-1{SEQUENCE}

{{server}}/platform-pub/public/numbering/v1/generateByTypeAndNumberFactors?numberingType=SEQ_TEST

The request data is:

{
    "SequenceFactors": {
        "PRODUCT_CODE": "TBTI",
        "TRANS_YEAR": "2023",
        "TRANS_MONTH": "05"
    },
    "OtherFactors": {}
}

response:

"TBTI-2023-05-1"
"TBTI-2023-05-2"
"TBTI-2023-05-3"
...
"TBTI-2023-05-9"
"TBTI-2023-05-0"   //when the sequence is exhausted, it will reset to 0 again. So please make sure the length is proper.
"TBTI-2023-05-1"

Example 2 -Variables & Sequence with Event

If a template is defined as:

{NotSeqFlg:CODCOMPANY}{NotSeqFlg:ISSUING_BRANCH_CODE}{INSURANCE_PORTIFOLIO}{SERVICE}6{SEQUENCE}

The request data is:

{
    "SequenceFactors": {
        "SERVICE":"SERVICEA",
        "INSURANCE_PORTIFOLIO": "333"
    },
    "OtherFactors": {
        "CODCOMPANY":"222",
        "ISSUING_BRANCH_CODE":"TEST"
    }
}

The returned number is like ”222TEST333SERVICEA000001“.

If any rule logic is defined for the template, users need to invoke the API ”/pa/v1/invokeRuleEvent?eventCode={{eventCode}}” first. The request data for invokeRuleEvent is the same as the business request data. The response returned as follows. The Code under the MessageList is expected to be the input values for generateByTypeAndNumberFactors request factors.

{
    "MessageList": [
        {   // highlight-next-line
            "Code": "{CODCOMPANY=222, ISSUING_BRANCH_CODE=TEST, INSURANCE_PORTIFOLIO=333, SERVICE=A}",
            "Message": "{CODCOMPANY=222, ISSUING_BRANCH_CODE=TEST, INSURANCE_PORTIFOLIO=333, SERVICE=A}",
            "RuleName": "PolicyNoFactor_Hans"
        }
    ],
    "Model": {
    // policy info
    },
    "Result": {
        "ExecuteEndTime": "2023-04-04T15:40:35",
        "ExecuteStartTime": "2023-04-04T15:40:35",
        "GroupExecutionResultList": [
            {
                "Group": {
                    "@pk": 533139267,
                    "BusinessUUID": "PolicyNumberHans",
                    "Code": "PolicyNumberHans",
                    "Description": "added for hdibrazil",
                    "GroupId": 533139267,
                    "GroupRuleMappingList": [
                        {
                            "@pk": 533139268,
                            "BusinessUUID": "533139267_PolicyNoFactor_Hans",
                            "GroupId": 533139267,
                            "MappingId": 533139268,
                            "Priority": 1,
                            "RecordUsage": 5,
                            "RuleId": 533139264
                        }
                    ],
                    "Name": "PolicyNumberHans",
                    "PubGroupId": 533139266,
                    "RecordUsage": 5
                },
                "RuleExecutionResultList": [
                    {
                        "RuleName": "PolicyNoFactor_Hans",
                        "RuleObjectExecutionResultList": [
                            {
                                "ScriptLog": [
                                    "1:val() get ProductCode value: TBTI",
                                    "2:val() get ProductVersion value: 1.0",
                                    "33:val() get IssuingBranchCode value: TEST"
                                ],
                                "ScriptResult": {
                                    "CODCOMPANY": "222",
                                    "INSURANCE_PORTIFOLIO": "333",
                                    "ISSUING_BRANCH_CODE": "TEST",
                                    "SERVICE": "A"
                                },
                                "Status": "SUCCEED"
                            }
                        ],
                        "Status": "SUCCEED"
                    }
                ],
                "Status": "SUCCEED"
            }
        ],
        "RuleContext": {
            "_$CURRENT_USER": {}
        },
        "Status": "SUCCEED"
    },
    "Status": "FAIL"
}

Scenario 1: Variables Affecting the Numbering

Take the Proposal No template as an example.

Requirement A: One Tenant has 2 different numbering templates to generate the proposal number, and the sequence length is inconsistent.

• Product HOME: **{X}6{SEQUENCE} **
• Other Products:** P{PRODUCT_CODE}8{SEQUENCE}**

If the length is defined as a variable, the system will interpret it solely as a variable, instead of the sequence length. In this case, it cannot be completed through pure configuration. It requires writing logic in the Backend for the Frontend.

Requirement B: One Tenant has 2 different numbering templates to generate the proposal number, and the sequence length is consistent.

• Product HOME: **{X}6{SEQUENCE} **
• Other Products: P{PRODUCT_CODE}6{SEQUENCE}

In this case, the template is {DiffProduct}6{SEQUENCE}. Users can set rules to get DiffProduct.

For more details about rule, see rule.

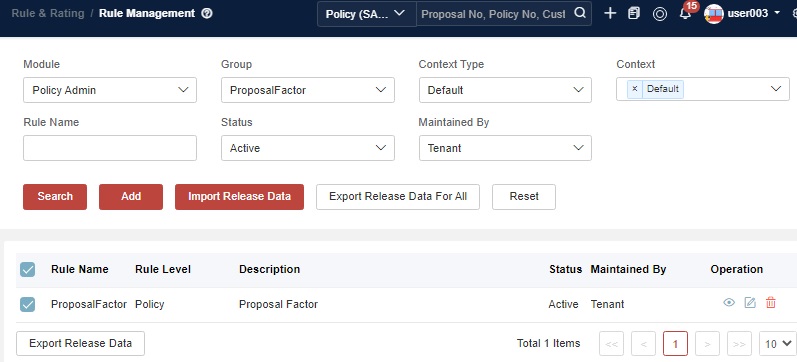

1. Rule Management

   Context Type binding Common - Common and Rule Level binding corresponding level.

   def Code=Policy().ProductCode.val
   def POCode="P"+ Code
   def X="INSUREMO"
   def map = [:]
   if(Code =="HOME")
   {
   map=['DiffProduct':X]
   return (map)
   }
   else{
   map=['DiffProduct': POCode]
   return (map)
   }

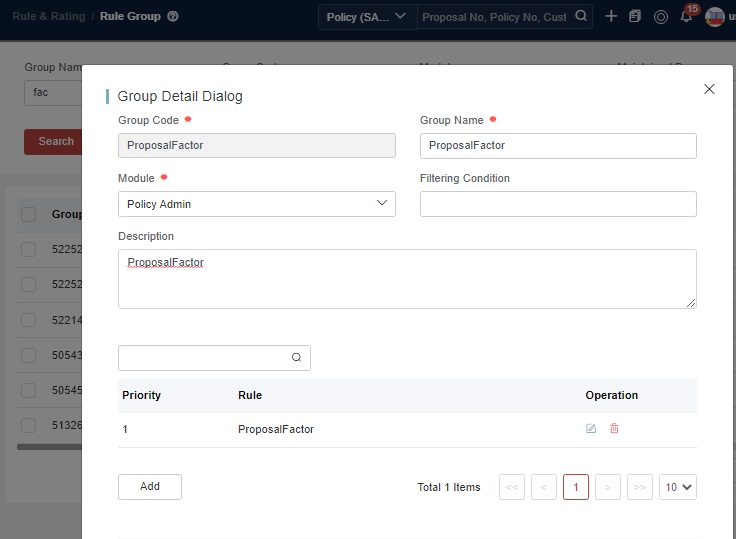

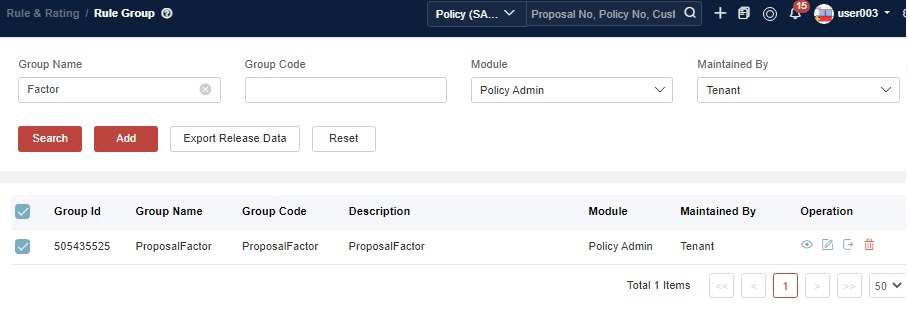

2. Configure Rule Group

   Create a new Rule Group, and bind the Rule to Corresponding Rule Group.

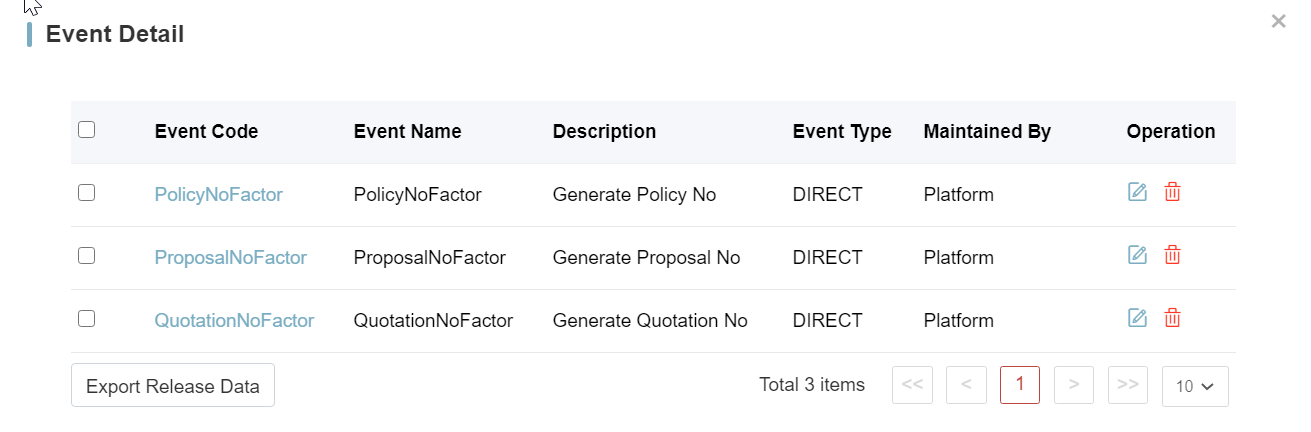

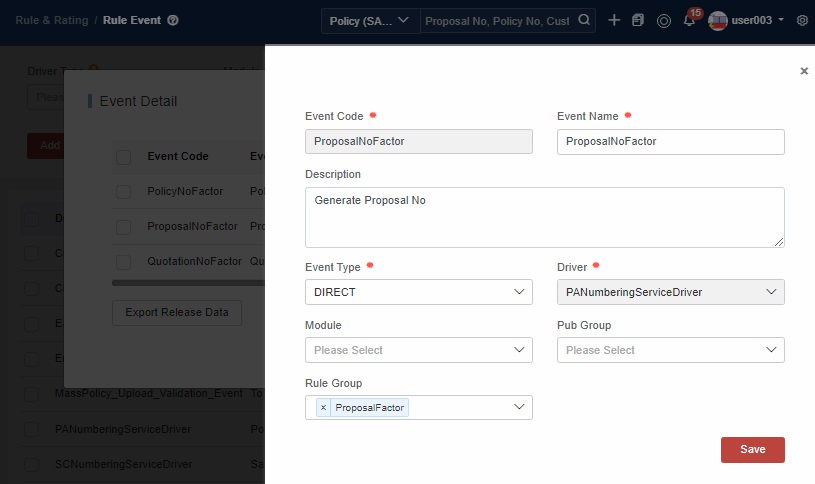

3. Configure Rule Event

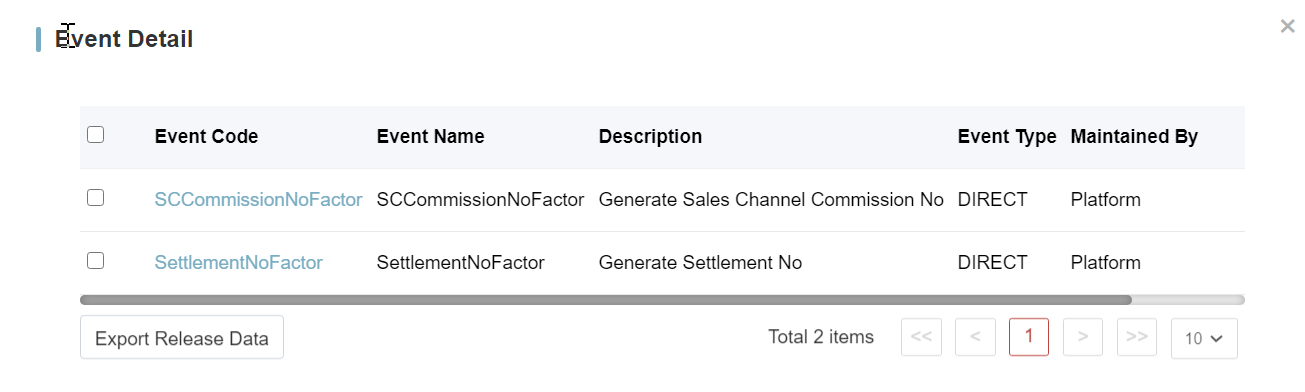

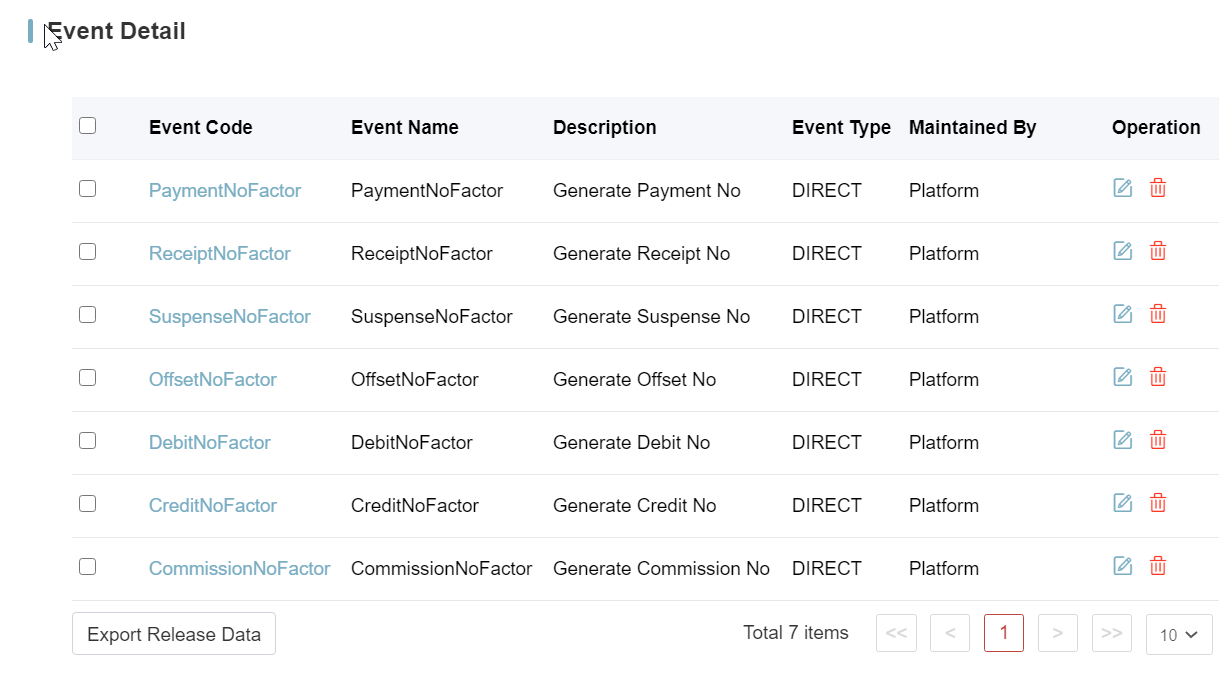

   The platform offers some predefined rule events if variables are involved.

   • PANumberingServiceDriver



   • BCPNumberingServiceDriver



   • SCNumberingServiceDriver



4. For variables affecting the numbering scenarios, bind the Rule Group to the corresponding existing Event.



5. Test through API (/proposal/v1/create)

• PROPOSAL_NUMBER: {DiffProduct}6{SEQUENCE}
• Product：HOME/PEI/TBTI/MI

Test the API 6 times, and the returned ProposalNo is like below. Since the DiffProduct is not labeled as ”NotSeqFlg”, for each DiffProduct, the numbers continue with each sequence.

1. INSUREMO000001

2. INSUREMO000002

3. PPEI000001

4. PPEI000002

5. PTBTI000001

6. PMI000001

Scenario 2: Variables Affecting the Numbering Sequence

It is independent of the scenarios above. It can be used alone or superimposed.

Take the Proposal No template as an example.

Requirement A: Template is P{PRODUCT_CODE}6{SEQUENCE}, and all products share a set of numbering sequences.

In this case Template is P{NotSeqFlg:PRODUCT_CODE}6{SEQUENCE}.

There is no variable information to be obtained. Modify the template directly, and it can take effect.

1. PTBTI000001
2. PTBTI000002
3. PPEI000003
4. PAUTO001000004

Requirement B: One Tenant has 2 different numbering templates to generate the proposal number, and all products share a set of numbering sequences.

• Product HOME:{X}6{SEQUENCE}
• Other Products:P{PRODUCT_CODE}6{SEQUENCE}

In this case Template is {NotSeqFlg:DiffProduct}6{SEQUENCE}.

1. Set These Variables through the Rule.

   • Groovy Rule, Context Type binding Common - Common, and Rule Level binding corresponding level. Here is a simple example:
   def Code=Policy().ProductCode.val
   def POCode="P"+ Code
   def X="INSUREMO"
   def map = [:]
   if(Code =="HOME")
   {
   map=['DiffProduct':X]
   return (map)
   }
   else{
   map=['DiffProduct': POCode]
   return (map)
   }

2. Configure Rule Group

   Add Rule Group and bind the Rule to Corresponding Rule Group.



3. Configure Rule Event

   For variables affecting the numbering sequence scenarios, bind the Rule Group to the Corresponding existing Event.



4. Test through API (/proposal/v1/create)

   • PROPOSAL_NUMBER: {NotSeqFlg:DiffProduct}6{SEQUENCE}
   • Product：HOME/PEI/TBTI/MI**

   Test the API 6 times, and Returned ProposalNo is like below. Since DiffProduct is not labeled as NotSeqFlg, the sequence numbers should increment consecutively for each distinct DiffProduct.

   1. INSUREMO000001
   2. PPEI000002
   3. PPEI000003
   4. PTBTI000004
   5. PMI000005
   6. INSUREMO000006

Scenario 3: Sequence Factor Affecting the Numbering Scenarios

This is only prepared for sequence skipping.

Take the Proposal No template as an example：

Requirement: The template is P{PRODUCT_CODE}6{SEQUENCE}. The sequence for the HOME product is an Even number while the sequence for the PEI product is an Odd number. Sequences for other products follow the standard pattern.

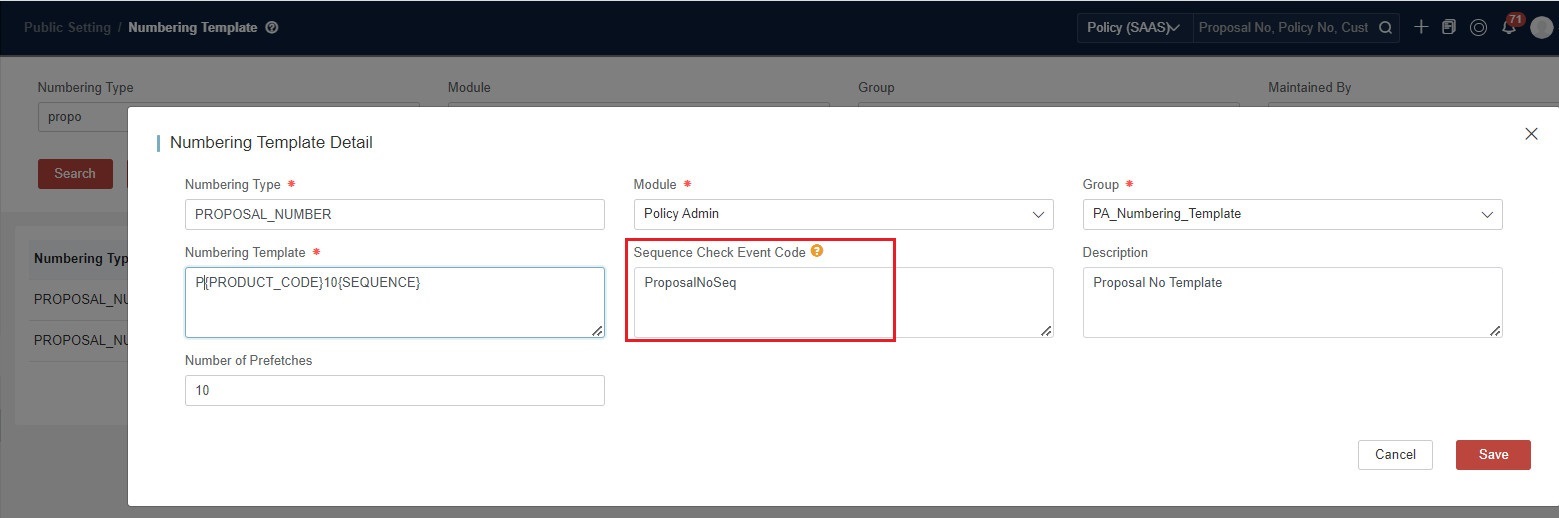

In this case Template is P{PRODUCT_CODE}6{SEQUENCE}. Sequence Check Event Code: ProposalNoSeq (This event code is user-defined to trigger the rule).

1. Pass in the Sequence Logic through Rule.

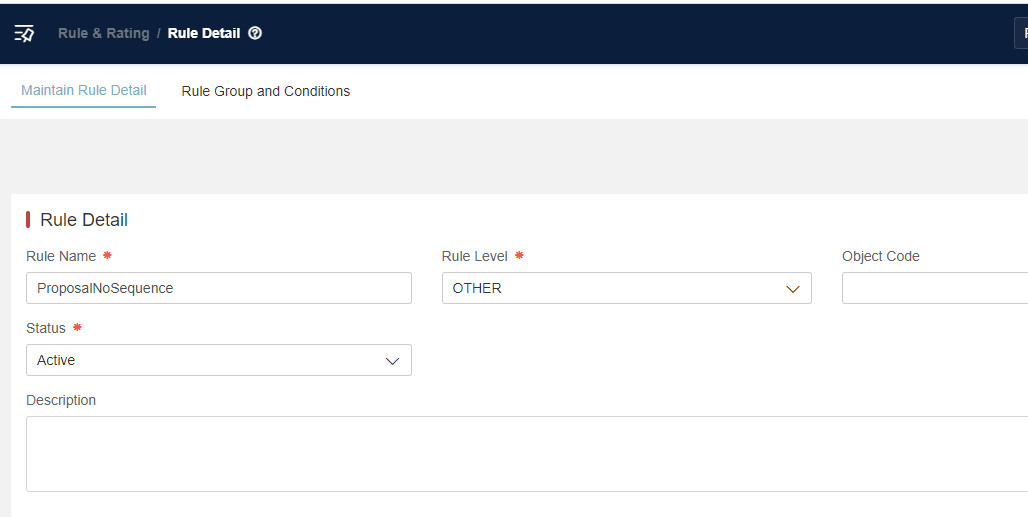

   In Rule Management, bind the Context Type to “Common” and set the Rule Level to “OTHER”. In this scenario, the Rule Level is fixed.



   This function depends on the complexity of the rule logic.
   Here is a simple example:

     def SeqFactor=context.get("PRODUCT_CODE")  //Obtaining method of factor: context.get("FactorName")
     def Num=context.get("seqNum")  //seqNum is predefined and it indicates the current numbering sequence number to check.
     if((SeqFactor == "HOME" && (Num%2 !=0)) || (SeqFactor == "PEI" && (Num%2 !=1)))
     {
        return 1
     }
     else
     {
        return 0
     }

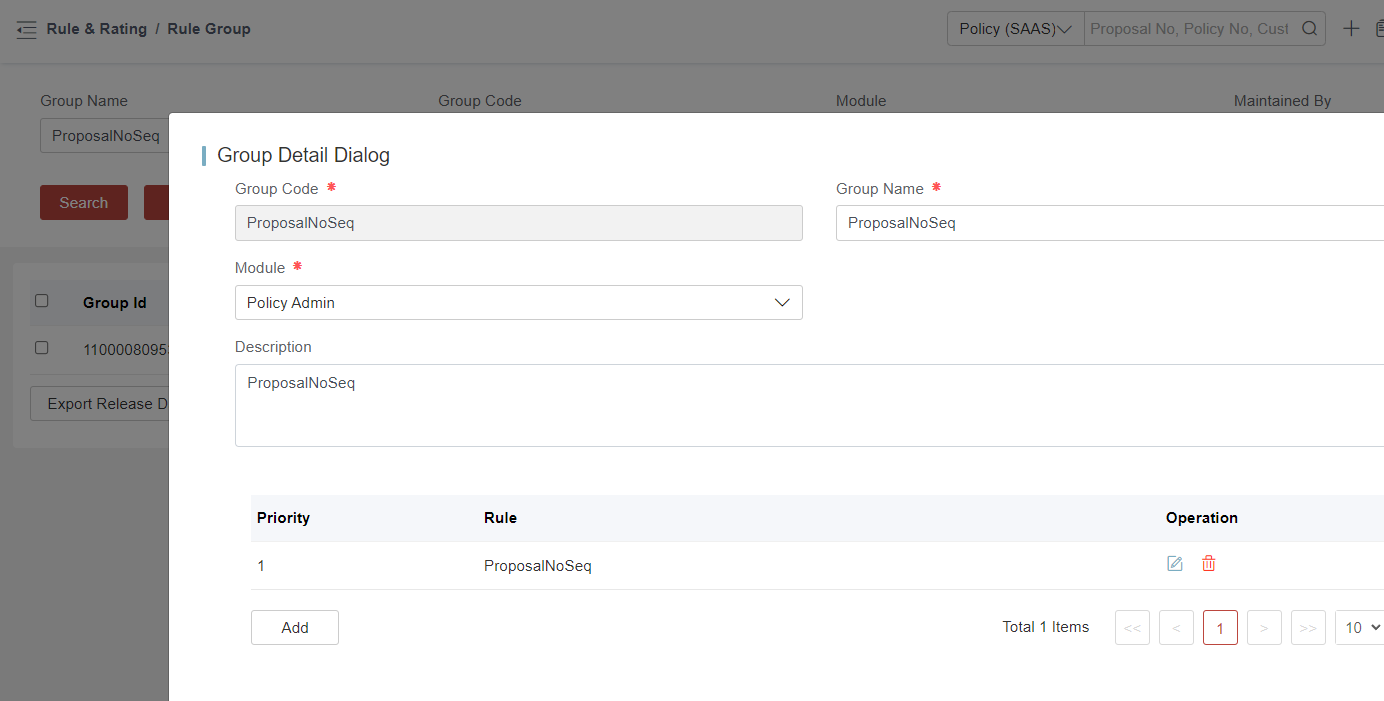

2. Configure Rule Group

   Add a Rule Group and bind the Rule to the Corresponding Rule Group.

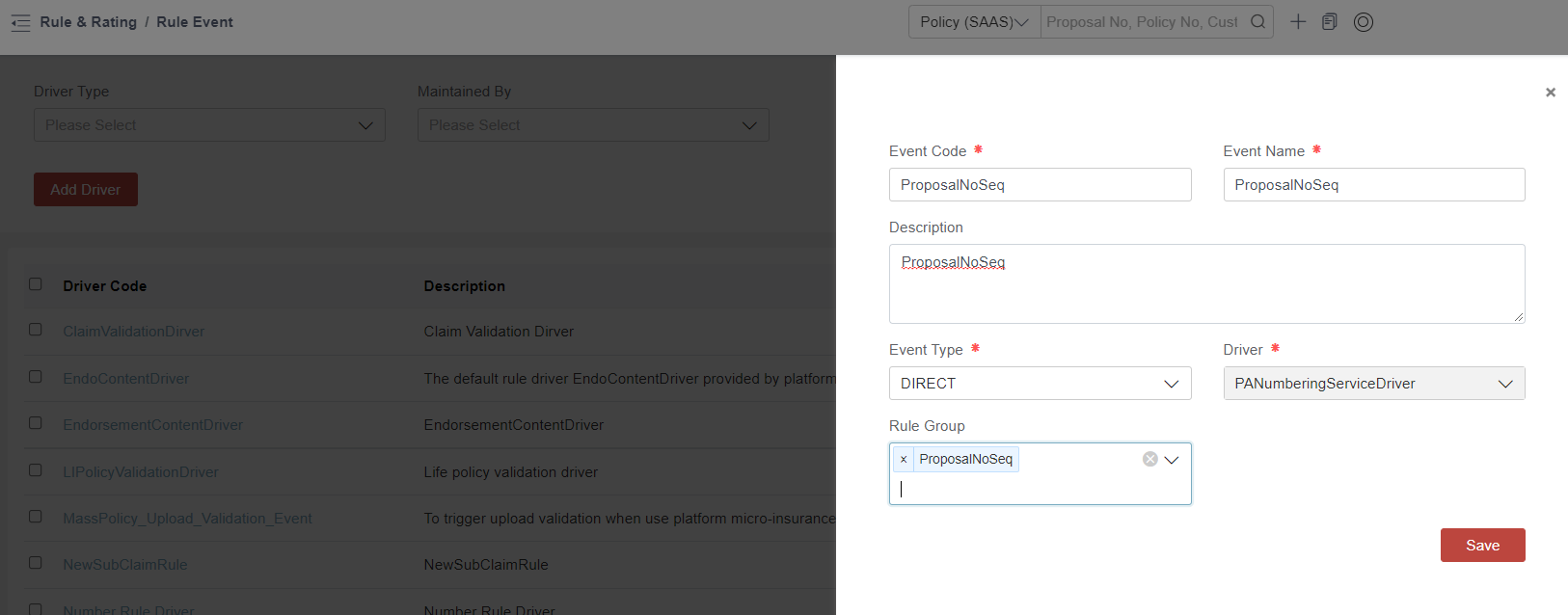

3. Configure Rule Event

   Add a new event code whose name must be consistent with the Sequence Event Code in the Numbering Template. Bind the Rule Group to this Event.



4. Test through API (/proposal/v1/create)

   • PROPOSAL_NUMBER: P{PRODUCT_CODE}6{SEQUENCE}
   • Product: HOME/PEI/TBTI/MI

   HOME Product Even number

   • PHOME000002
   • PHOME000004
   • PHOME000006

   PEI Product Odd number

   • PPEI000001
   • PPEI000003
   • PPEI000005

   Other Products:

   • PTBTI000001
   • PTBTI000002
   • PMI000001

Clear Cache

If the configuration does not take effect, please try to clear the cache under the menu Public Setting > Clear Cache.
For UI configuration, we will continue to optimize the automatic cache clearing internally.

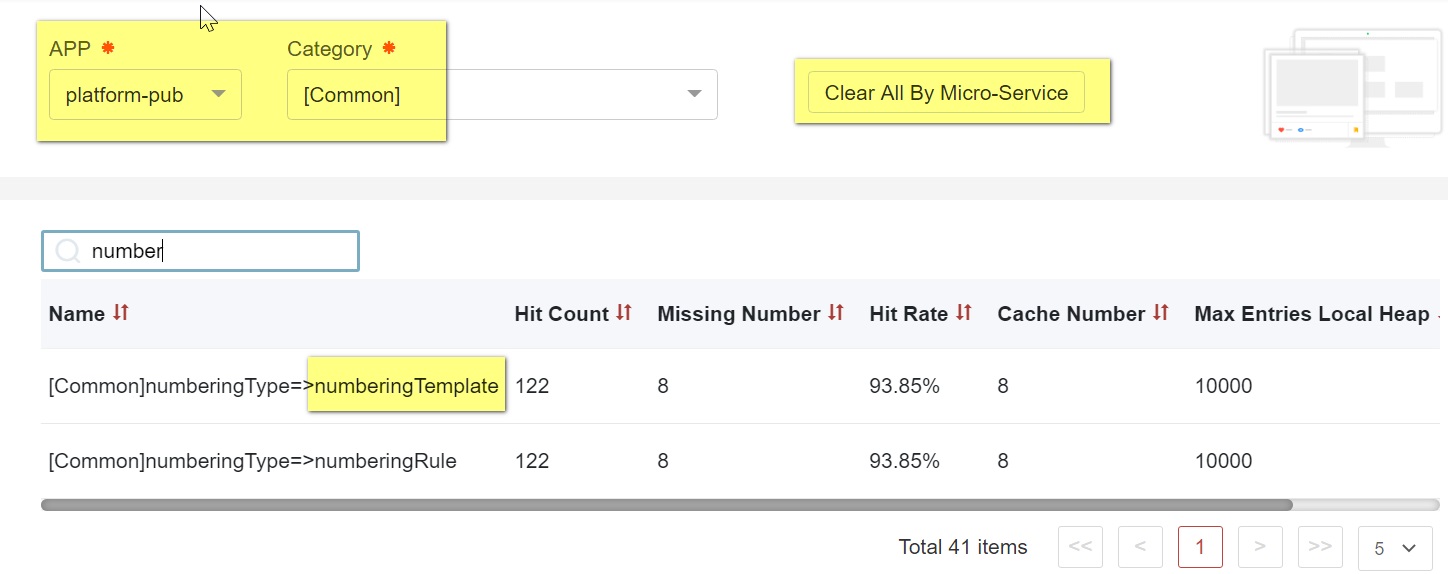

• Clear Platform-pub/Common cache

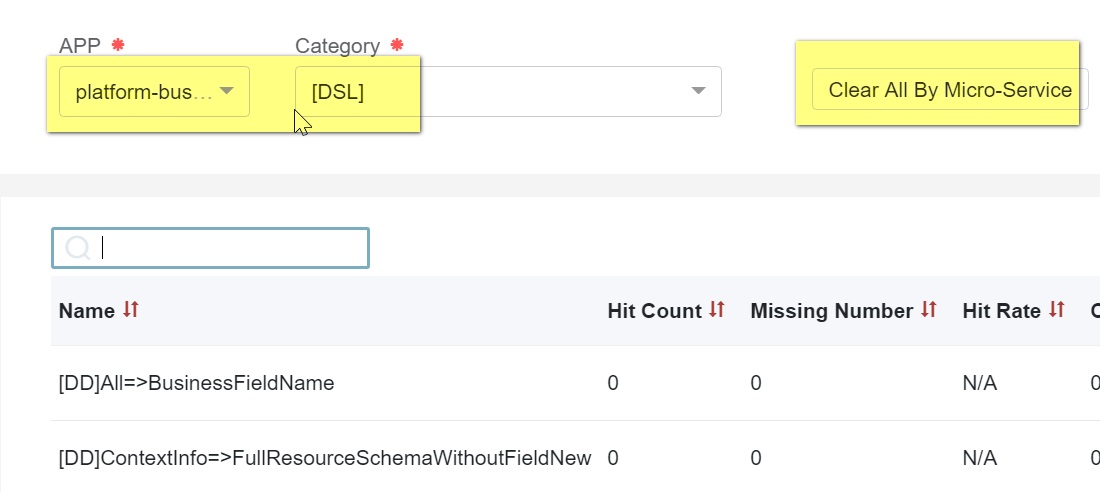

• Clear Platform-busi-config/DSL cache



Export & Check in

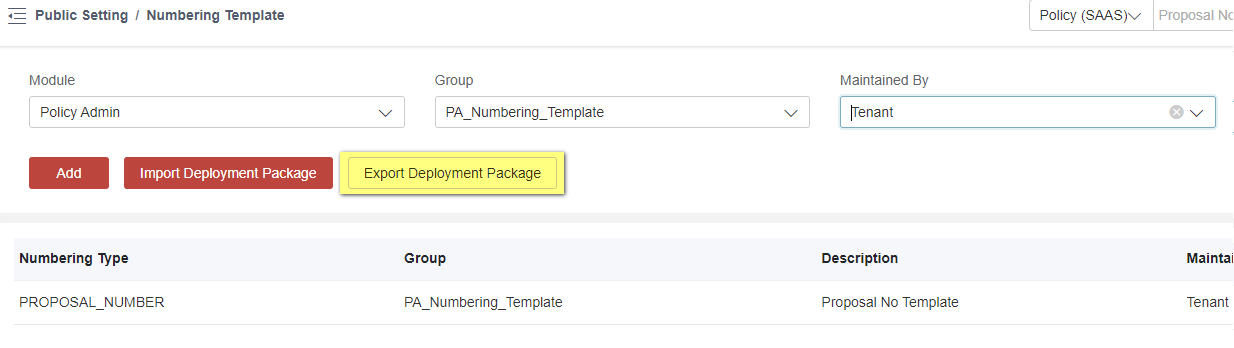

Export

• Numbering Template



• Rule by Screening Conditions



• Rule Group by Module

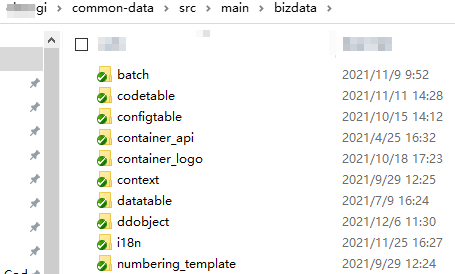

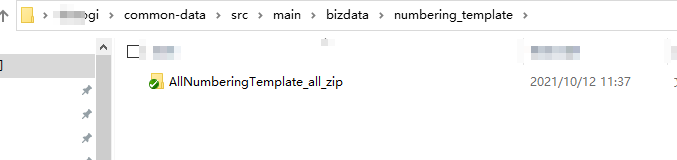

Check in

• Numbering Template

  Create a new folder for the following business data, and name it in lowercase letters such as numbering_template.



  Name it clearly and put it in the numbering_template folder.

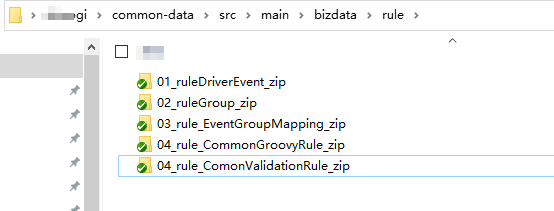

• Rule and Rule Group

  Name it clearly and put it in the rule folder.



Numbering Sequence Maintenance

Each numbering template has its own numbering sequence. By default, the sequence starts at 0 and increments by one each time the numbering template is deployed and the corresponding numbering API is invoked.

There might be some cases in which clients want to numbering sequence to start from a user-defined number and increment. If that happens, users need to follow the steps:

1. Submit a request to SiteOps to get platform DB access information for the PUB schema in a development environment.

2. Locate your numbering sequence with the provided script as an example.

SELECT * FROM t_pub_numbering_seq t WHERE t.NUMBERING_TYPE ='INDI_CUST_NUMBER';

3. Prepare a script to update the numbering sequence according to business requirements.

UPDATE t_pub_numbering_seq set SEQ_NUM=7500000000 WHERE NUMBERING_TYPE ='INDI_CUST_NUMBER' AND NUMBERING = '10{SEQUENCE}'

The above script means that you want to:

• locate numbering template =‘INDI_CUST_NUMBER’
• locate number sequence in the template = 10{SEQUENCE} - This must follow numbering sequence in numbering template configuration.
• set SEQ_NUM to 7500000001 or 7500000000.

4. Execute script

Please note that since it’s relevant to platform DB. In some cases, especially for environments like UAT & PROD, you might need to delegate the script to SiteOps for the whole execution.

Code Logic to Generate Number

The following code shows the logic to invoke RuleEvent to get the factors for ReceiptNo, and then generate numbers by using these factors.

public String generateReceiptNo() {
		String pdcReceiptNo = null;
		NumberingProvider service = SpringContextUtils.getBean(NumberingProvider.class);
		try {
			Collection collection = new Collection();
			Map<String, String> seqFactors = service.getSequenceFactorsByRule(EVENT_NAME__RECEIPT_NO_SEQ_FACTORS, collection, null);
			seqFactors.putAll(getNumberFactors());
			pdcReceiptNo = service.generateNumber(NumberingType.FN_RECEIPT_NUMBER.value(), seqFactors);
		} catch (Exception e) {
			throw new RuntimeException("ReceiptNo can not be generated", e);
		}
		return pdcReceiptNo;
	}

FAQ

1. API Cannot Return Rule Logic

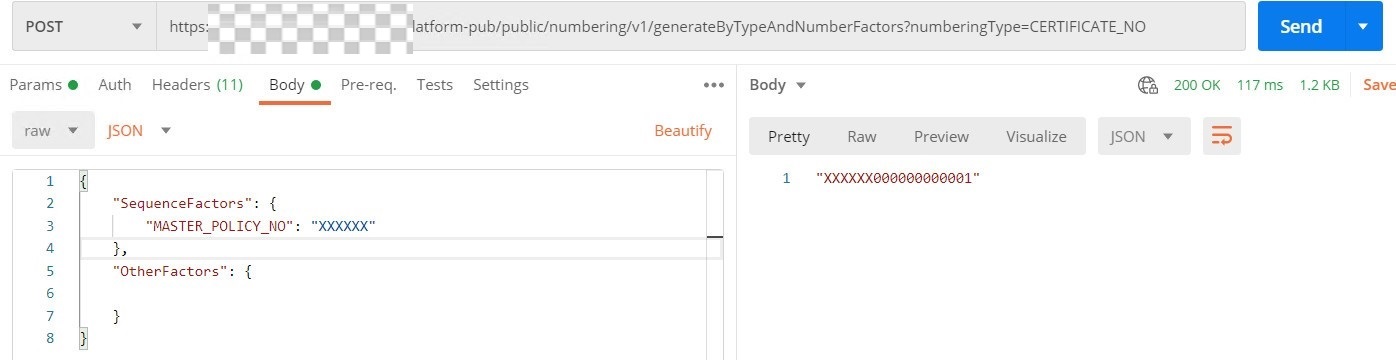

Question: Why doesn’t the API /platform-pub/public/numbering/v1/generateByTypeAndNumberFactors?numberingType=xxxxxx support rule logic?

Answer: The API only generates numbers and does not trigger rule events. For example:

• Template: {MASTER_POLICY_NO}12{SEQUENCE}
  • In SequenceFactors: Resets sequence when MASTER_POLICY_NO changes (e.g., A0001, B0001, C0001).
  • In OtherFactors: Shares a single sequence regardless of changes (e.g., A0001, B0002, C0003).

If you fill in Sequence Check Event Code, atomic API ‘generateByTypeAndNumberFactors’ can drive the event code. However, this is only prepared for sequence skipping, which means that your rules must include logic to handle sequence skipping. For details, see Scenario 3.

2. Non-Consecutive Numbering

Question: I found my business number is not in consecutive order and there might be some number skipped and not being used in any place. Is that correct?

Answer: Yes, this is expected. Due to our microservices architecture, consecutive numbering is not guaranteed.

The underlying reason is because to ensure data integrity after a transaction, we apply a global transaction mechanism when invoking APIs across multiple microservices. During this process, a TransactionNo may be retrieved or generated; however, it could ultimately be rolled back if the global transaction fails.

Because the generation of TransactionNo is atomic and non-blocking, meaning it does not prevent others from generating new numbers. As a result, even if the transaction associated with a TransactionNo fails, the number will not be rolled back. So far, there’s no the possibility of reusing or reassigning skipped numbers and no such pooling mechanism in place.

3. Pre-allocated Policy Number Low-Stock Alert

Question: For one carrier, policy numbers are pre-allocated externally and imported into our system. Before the available pool is exhausted, we need an early-warning mechanism: once the remaining count drops below a configurable threshold, the system will automatically alert the carrier so they can supply a new range. What implementation approach would you recommend for this requirement?

Answer: Policy numbers are pre-allocated by the insurer and stored in a dedicated number pool. At policy insurance, the system sequentially pulls a number from the pool and assigns it to the policy.

The entire solution can be implemented with iComposer:

1. Persist the insurer-provided number ranges in IComposerDbDataUtils.
2. Run a lightweight nightly batch job to count the remaining available numbers.
3. When the remaining quantity falls below a configurable threshold, the system automatically sends an email alert to the insurer (including the current range and remaining count, etc.), prompting them to supply a new range.

This achieves proactive inventory management of number ranges without manual monitoring.
